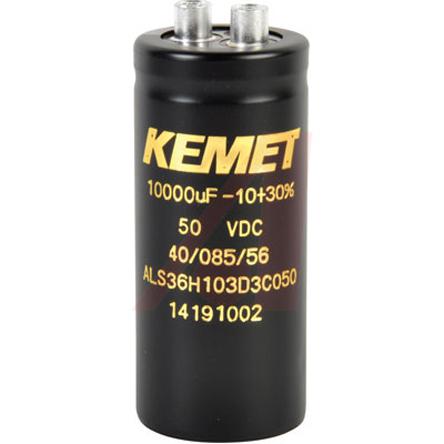

Diameter:
34.93mm
Ripple Current:
11.7 A @ 120 Hz, 15.6 A @ 20 kHz
Polarised:
Polar
Dimensions:
34.93 x 79.38mm
Mounting Type:
Screw Terminal
Series:
ALS36
Equivalent Series Resistance:
18 mΩ @ 20 Hz, 24 mΩ @ 120 Hz
Height:
79.38mm
Capacitance:
10000µF
Length:
79.38mm
Voltage:
50V dc
Leakage Current:
3 mA
Lifetime:
11000 h @ +85 °C/50V dc/Ir, 22000 h @ +85 °C/50V dc
Lead Pitch:
12.7mm
Maximum Operating Temperature:
+85°C
Tolerance:
-10 → +30%
Minimum Operating Temperature:
-40°C
Technology:
Aluminium Electrolytic
Ratings:
-
HTSUS:
8532.22.0040
ESR (Equivalent Series Resistance):
24mOhm @ 120Hz
Polarization:
Polar
Capacitance:
10000 µF
Operating Temperature:
-40°C ~ 85°C
Package / Case:
Radial, Can - Screw Terminals
Tolerance:
-10%, +30%
Voltage - Rated:
50 V
Height - Seated (Max):
3.125" (79.38mm)
Ripple Current @ High Frequency:
15.6 A @ 20 kHz
REACH Status:
REACH Unaffected
Ripple Current @ Low Frequency:
11.7 A @ 120 Hz
Applications:
General Purpose
Surface Mount Land Size:
-
Package:
Box
Size / Dimension:
1.375" Dia (34.93mm)
standardLeadTime:
38 Weeks
Moisture Sensitivity Level (MSL):
Not Applicable
Mounting Type:
Chassis Mount
Series:
ALS36
Lifetime @ Temp.:
11000 Hrs @ 85°C
Lead Spacing:
0.500" (12.70mm)
Base Product Number:
ALS36H
ECCN:
EAR99
