Polarity:
Non-Inverting
Dimensions:
8.2 x 5.3 x 1.95mm
Minimum Operating Supply Voltage:
2.3 V, 3 V
Logic Family:
LVC
Width:
5.3mm
Input Level:
LVTTL
Maximum Low Level Output Current:
24mA
Maximum High Level Output Current:
-24mA
Maximum Propagation Delay Time @ Maximum CL:
11.2 ns @ 3.3 V
Number of Channels per Chip:
8

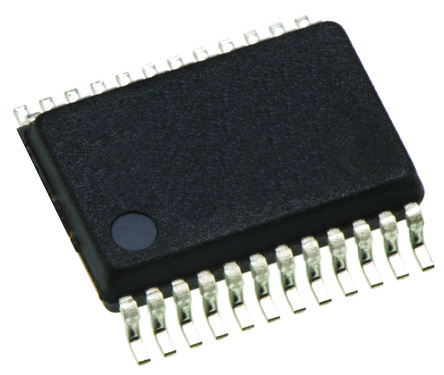

Package Type:
SSOP
Number of Elements per Chip:
1
Maximum Operating Temperature:
+85 °C
Output Level:
LVTTL
Length:
8.2mm
Pin Count:
24
Maximum Operating Supply Voltage:
3.6 V, 5.5 V
Mounting Type:
Surface Mount
Logic Function:
Bus Transceiver
Height:
1.95mm
Minimum Operating Temperature:
-40 °C
Propagation Delay Test Condition:
50pF
Translator Type:
Voltage Level
HTSUS:
8542.39.0001
RoHS Status:
ROHS3 Compliant
Output Signal:
-
Operating Temperature:
-40°C ~ 85°C (TA)
Package / Case:
24-SSOP (0.209", 5.30mm Width)
Input Signal:
-
REACH Status:
REACH Unaffected
Output Type:
Tri-State, Non-Inverted
Data Rate:
-
Package:
Tape & Reel (TR)
Channel Type:
Bidirectional
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Voltage - VCCB:
3 V ~ 5.5 V
Voltage - VCCA:
2.3 V ~ 3.6 V
standardLeadTime:
8 Weeks
Number of Circuits:
1
Channels per Circuit:
8
Features:
-
Mounting Type:
Surface Mount
Series:
74LVCC
Supplier Device Package:
24-SSOP
Base Product Number:
74LVCC3245
ECCN:
EAR99
