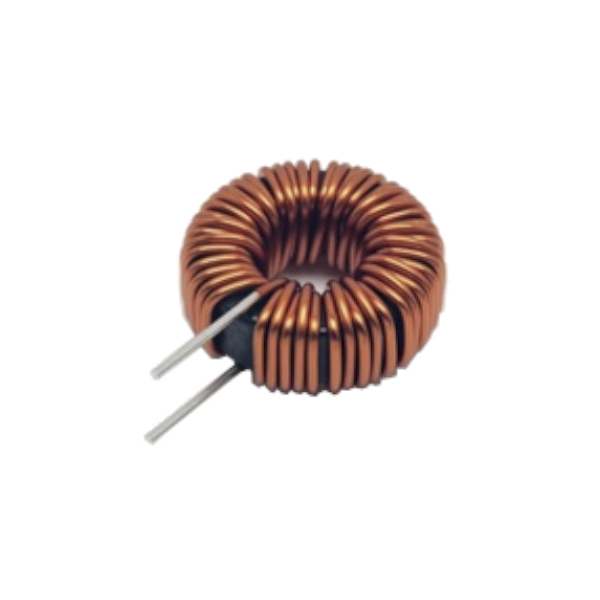

KEMET 54 μH 12 A Common Mode Choke 11.5mΩ

Enrgtech Part No: ET17723609
|
Manufacturer Part No:
SHBC20-1R7A0054V
|
Manufacturer: Kemet

(0)

Product Information

Depth:

41.2mm

Height:

19.5mm

Series:

SHBC

Dimensions:

41.2 (Dia.) x 19.5mm

Inductance:

54 μH

DC Resistance:

11.5mΩ

Mounting Type:

Through Hole

Test Frequency:

100 kHz

Maximum Current:

12 A

Number of Lines:

Termination Style:

Solder Pad

Operating Temperature Range:

-40°C → +125°C

16 - In Stock

In Stock

Each

Quantity

Unit Price (ex VAT)

Price

£ 4.55

£ 72.80

Mfr Part No:

SHBC20-1R7A0054V

Seller:

Kemet

Origin:

Warranty:

Manufacturer

Data Code:

ET17723609

Order Today!

From: United Kingdom

Est Ship Date: 03 Aug, 2026

Est Fastest Delivery: 04 Aug, 2026

Quantity Quantity

This is KEMET 54 μH 12 A Common Mode Choke 11.5mΩ manufactured by Kemet. The manufacturer part number is SHBC20-1R7A0054V. The product comes in 41.2mm depth. In addition, the height is 19.5mm. The product shbc, is a highly preferred choice for users. The given dimensions of the product include 41.2 (dia.) x 19.5mm. The product has a 54 μh inductance value. The product is available in through hole configuration. It features a test frequency of 100 khz. It is comprised of 2 lines. Moreover, it has solder pad terminal style. It has a maximum operating temperature of +125°c. Whereas, the minimum operating temperature of the product is -40°c.
