Minimum CMRR:
90dB
Dimensions:
3 x 1.75 x 1.3mm
Mounting Type:
Surface Mount
Power Supply Type:
Single
Number of Channels per Chip:
1
Maximum Supply Current:
0.3 mA
Height:
1.3mm
Typical Single Supply Voltage:
5 V, 9 V, 12 V, 15 V, 18 V
Width:
1.75mm
Length:
3mm
Package Type:
SOT-23
Minimum Operating Temperature:
-40 °C
Maximum Operating Supply Voltage:
24 V
Minimum Operating Supply Voltage:
4 V
Maximum Operating Temperature:
+125 °C
Pin Count:
5
HTSUS:
8542.33.0001
RoHS Status:
ROHS3 Compliant
Current - Output / Channel:
60 mA
Operating Temperature:
-40°C ~ 125°C
Package / Case:
SC-74A, SOT-753
Current - Input Bias:
5.5 µA
Voltage - Input Offset:
200 µV
Voltage - Supply Span (Max):
24 V
Voltage - Supply Span (Min):
4 V
-3db Bandwidth:
450 kHz
REACH Status:
REACH Unaffected
Output Type:
-
Current - Supply:
165µA
Package:
Tape & Reel (TR)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Slew Rate:
0.9V/µs
standardLeadTime:
45 Weeks
Number of Circuits:
1
Mounting Type:
Surface Mount
Series:
-
Supplier Device Package:
SOT-23-5
Amplifier Type:
Current Sense
Base Product Number:
TSC101
ECCN:
EAR99

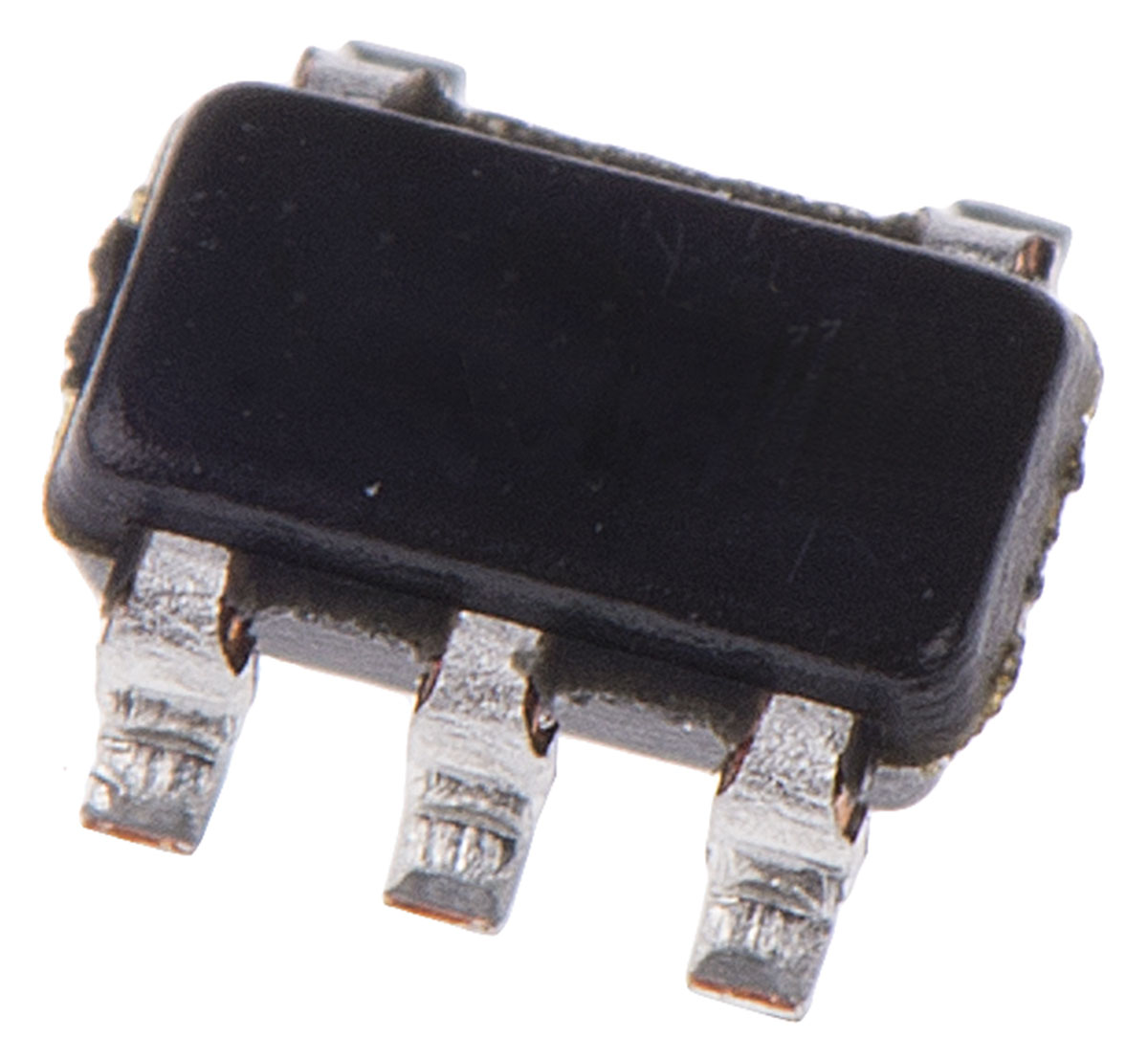

This is manufactured by STMicroelectronics. The manufacturer part number is TSC101CILT. The given dimensions of the product include 3 x 1.75 x 1.3mm. The product is available in surface mount configuration. In addition, the height is 1.3mm. Furthermore, the product is 1.75mm wide. Its accurate length is 3mm. Whereas, the minimum operating temperature of the product is -40 °c. It has a maximum operating temperature of +125 °c. It is assigned with possible HTSUS value of 8542.33.0001. The product is rohs3 compliant. It carries 60 ma output or channel current. The product has -40°c ~ 125°c operating temperature range. Moreover, the product comes in [Package/ Case]. The typical current - input bias includes 5.5 µa. The input offset voltage is 200 µv. The maximum voltage supply span of the product is 24 v. While the minimum voltage supply is 4 v. A 450 khz of bandwidth. In addition, it is reach unaffected. The current - supply of a bespoke product is 165µa. It is shipped in tape & reel (tr). Its typical moisture sensitivity level is 1 (unlimited). The 0.9v/µs is the slew rate of the product. It has a long 45 weeks standard lead time. It integrates 1 circuits. sot-23-5 is the supplier device package value. It is a sort of a current sense amplifier. Moreover, it corresponds to tsc101, a base product number of the product. The product is designated with the ear99 code number
