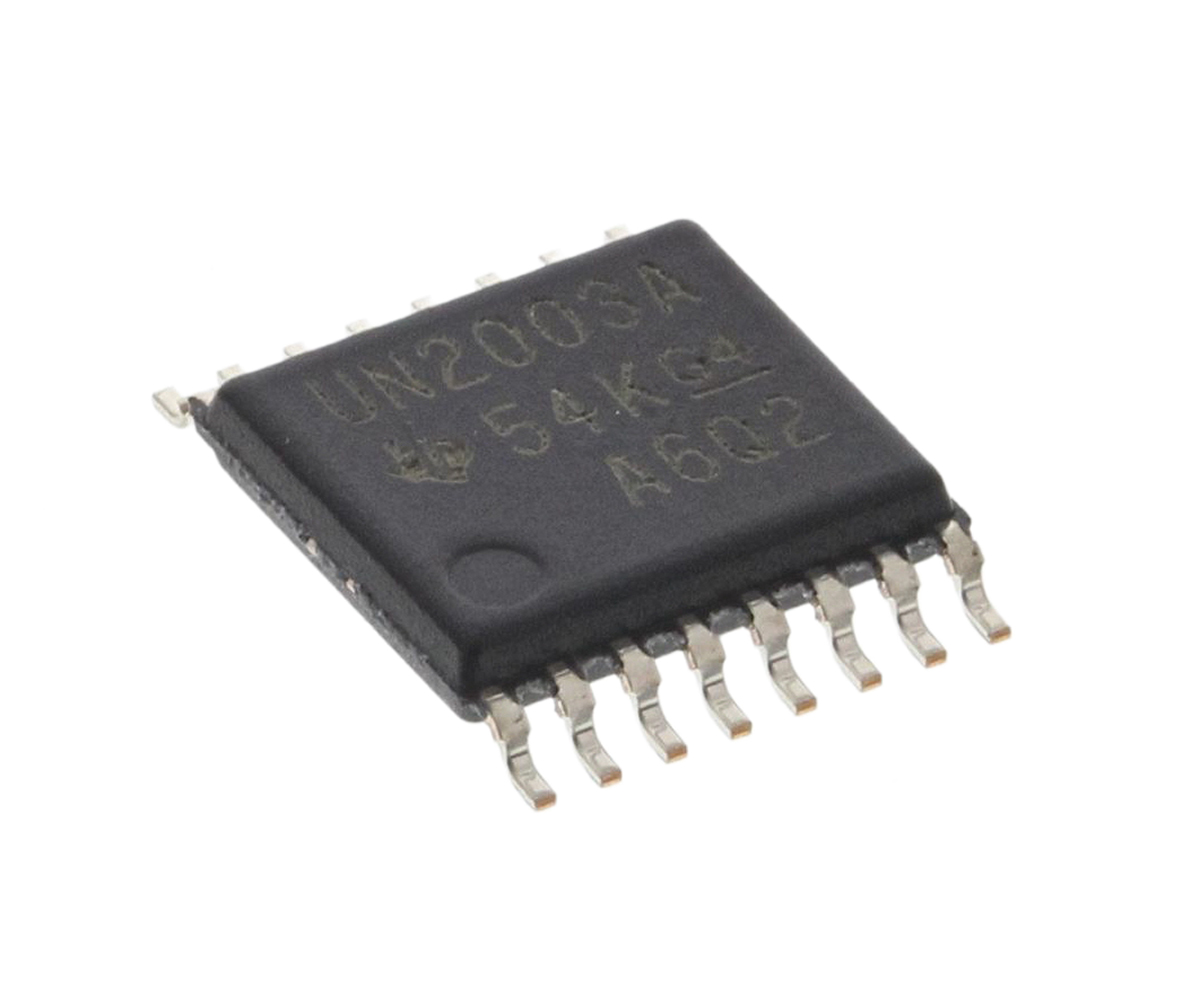

Texas Instruments ULN2003APW, 7-element NPN Darlington Transistor, 500 mA 50 V, 16-Pin TSSOP

Enrgtech Part No: ET14015932
|
Manufacturer Part No:
ULN2003APW
|
Manufacturer: Texas Instruments

ULN2003APW Texas Instruments , 7-element NPN Darlington Transistor, 500 mA 50 V, 16-Pin TSSOP

(0)

Product Information

Width:

4.4mm

Height:

1.15mm

Length:

5mm

Pin Count:

Dimensions:

5 x 4.4 x 1.15mm

Package Type:

TSSOP

Mounting Type:

Surface Mount

Transistor Type:

NPN

Transistor Configuration:

Common Emitter

Number of Elements per Chip:

Maximum Operating Temperature:

+70 °C

Minimum Operating Temperature:

-20 °C

720 - In Stock

In Stock

Each

Quantity

Unit Price (ex VAT)

Price

£ 0.67

£ 60.30

180

£ 0.54

£ 97.20

450

£ 0.53

£ 238.50

Mfr Part No:

ULN2003APW

Seller:

Texas Instruments

Origin:

Warranty:

Manufacturer

Data Code:

ET14015932

Order Today!

From: United Kingdom

Est Ship Date: 27 Jul, 2026

Est Fastest Delivery: 28 Jul, 2026

Quantity Quantity

This is 7-element NPN Darlington Transistor 500 mA 50 V 16-Pin TSSOP manufactured by Texas Instruments. The manufacturer part number is ULN2003APW. Furthermore, the product is 4.4mm wide. In addition, the height is 1.15mm. Its accurate length is 5mm. The given dimensions of the product include 5 x 4.4 x 1.15mm. The product is available in surface mount configuration. The transistor is a npn type. It has a maximum operating temperature of +70 °c. Whereas, the minimum operating temperature of the product is -20 °c.
