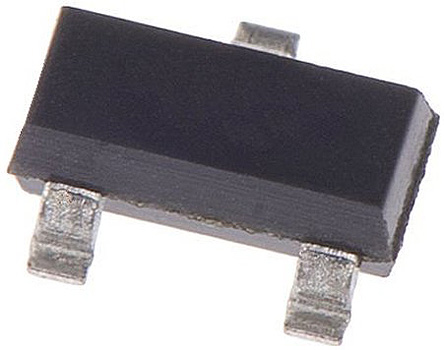

Nexperia BCV47,215 NPN Darlington Pair, 500 mA 60 V HFE:2000, 3-Pin SOT-23 (TO-236AB)

BCV47-215 Nexperia BCV47,215 NPN Darlington Pair, 500 mA 60 V HFE:2000, 3-Pin SOT-23 (TO-236AB)
BCV47,215
Nexperia

Product Information

Minimum DC Current Gain:
2000
Transistor Type:
NPN
Dimensions:
3 x 1.4 x 1mm
Mounting Type:
Surface Mount
Maximum Emitter Base Voltage:
10 V
Maximum Continuous Collector Current:
500 mA
Maximum Collector Base Voltage:
80 V
Maximum Collector Emitter Voltage:
60 V
Maximum Base Emitter Saturation Voltage:
1.5 V
Maximum Collector Cut-off Current:
0.0001mA
Height:
1mm
Width:
1.4mm
Length:
3mm
Package Type:
SOT-23 (TO-236AB)
Number of Elements per Chip:
1
Minimum Operating Temperature:
-65 °C
Maximum Collector Emitter Saturation Voltage:
1 V
Maximum Operating Temperature:
+150 °C
Pin Count:
3
Transistor Configuration:
Single
RoHs Compliant
Checking for live stock

This is NPN Darlington Pair 500 mA 60 V HFE:2000 3-Pin SOT-23 (TO-236AB) manufactured by Nexperia. The manufacturer part number is BCV47,215. The transistor is a npn type. The given dimensions of the product include 3 x 1.4 x 1mm. The product is available in surface mount configuration. In addition, the height is 1mm. Furthermore, the product is 1.4mm wide. Its accurate length is 3mm. Whereas, the minimum operating temperature of the product is -65 °c. It has a maximum operating temperature of +150 °c.
