Dimensions:
6.2 x 94 x 80mm
Coil Voltage:
24V dc
Turn On Time:
5ms
Turn Off Time:
8ms
Input Current:
9mA
Standards Met:
cRU Listed, cUL Listed, CULus, UL Listed, VDE
Switching Voltage:
5 → 250V ac/dc
Maximum Operating Temperature:
+60°C
Terminal Type:
Screw
Operating Temperature Range:
-40 → +60°C
Contact Configuration:
SPST
Length:
6.2mm
Special Features:
Efficient Connection to System Cabling Using V8 Adapter, Time Savings of Up to 60%
Mounting Type:
DIN Rail
Series:

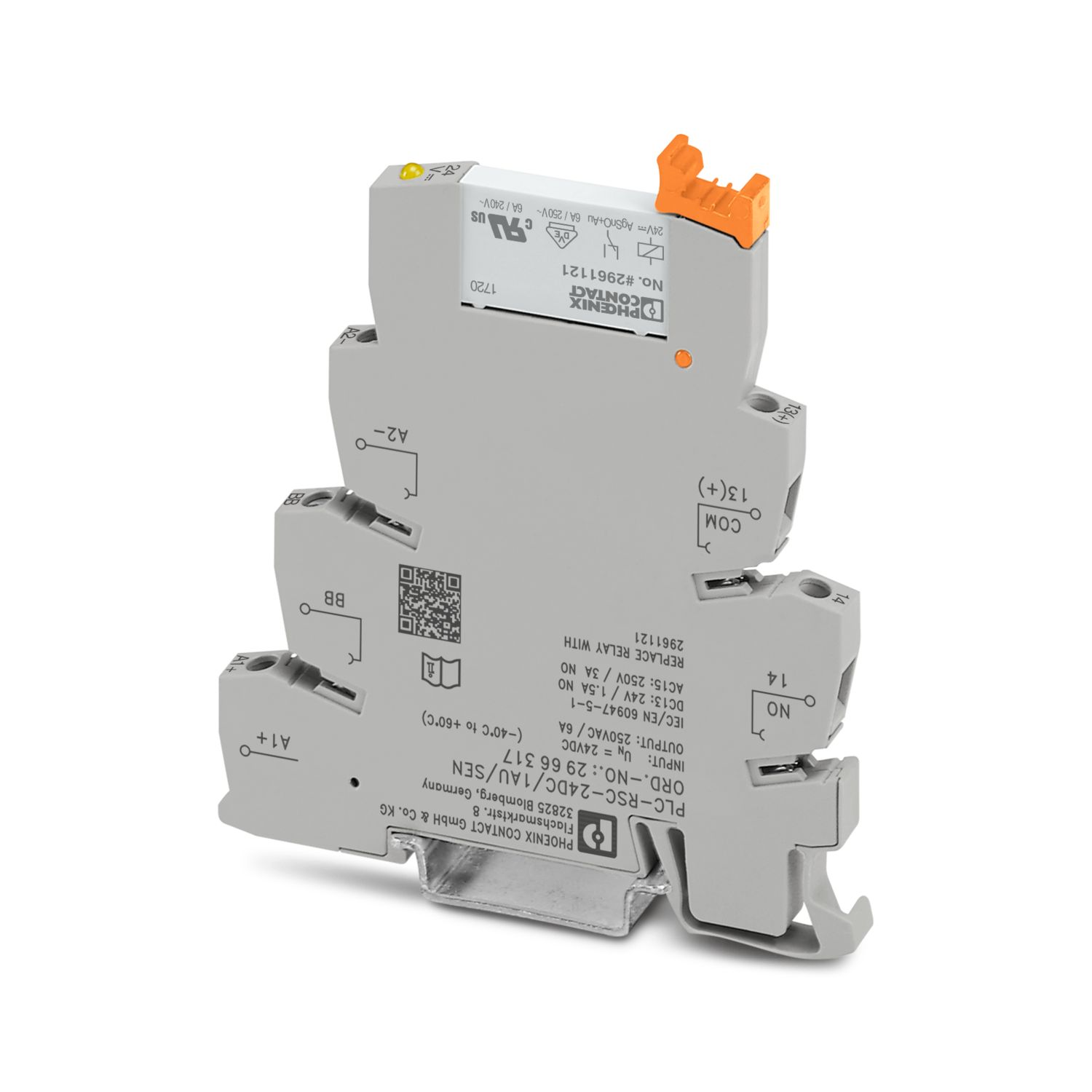

PLC-RSC- 24DC/1AU/SEN
Depth:
94mm
Height:
80mm
Minimum Operating Temperature:
-40°C
Number of Poles:
1
Maximum Input Voltage:
24V dc
Contact Material:
Gold Plated
HTSUS:
8536.41.0060
RoHS Status:
RoHS Compliant
Coil Voltage:
24VDC
Termination Style:
Screw Terminal
Operating Temperature:
-25°C ~ 60°C
Coil Current:
9 mA
Coil Type:
Non Latching
Switching Voltage:
30VAC, 36VDC - Max
Seal Rating:
-
Must Operate Voltage:
-
Relay Type:
General Purpose
Package:
Bulk
Contact Form:
SPST-NO (1 Form A)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Operate Time:
5 ms
Must Release Voltage:
-
standardLeadTime:
8 Weeks
Contact Rating (Current):
50 mA
Features:
Lighted Indicator, Socket Included
Mounting Type:
DIN Rail
Series:
PLC-RSC
Release Time:
8 ms
Coil Insulation:
-
ECCN:
EAR99
Contact Material:
Silver Tin Oxide (AgSnO), Gold (Au)
