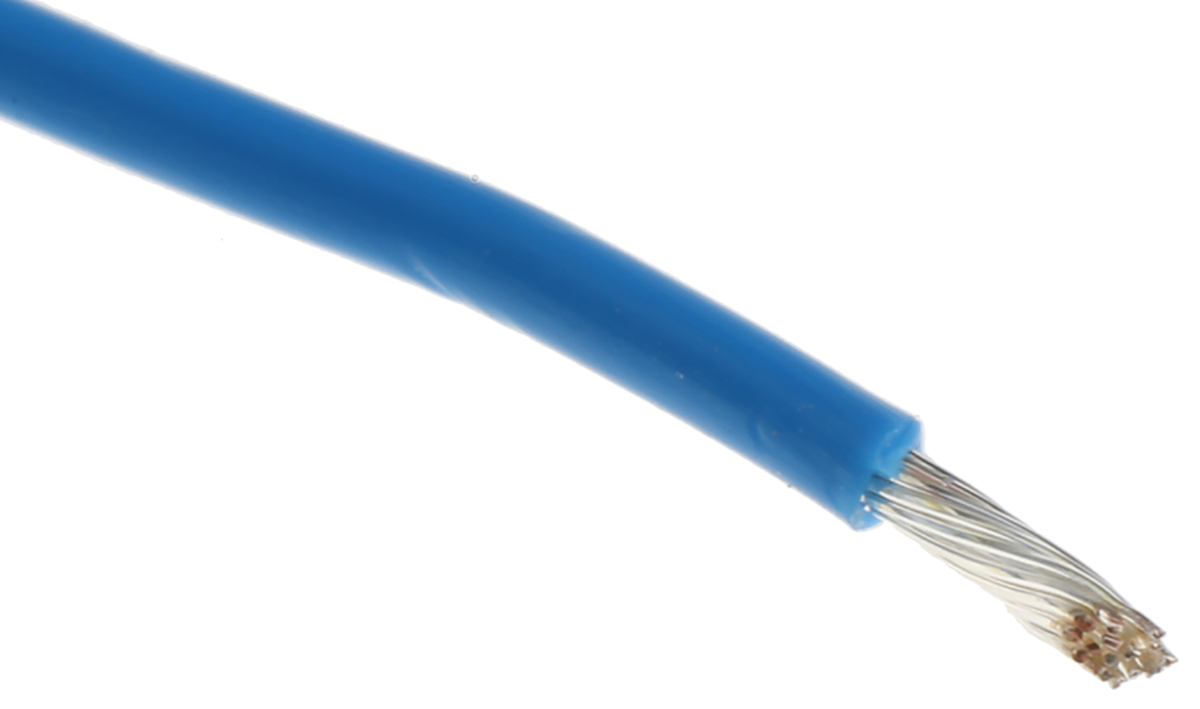

American Wire Gauge:
20 AWG
Number of Strands:
19
Standards Met:
MIL-W-16878/4, NEMA HP-EXBBB, UL1213, VW-1
Voltage Rating:
600 V
Conductor Material:
Silver Plated Copper
Series:
Premium
Shield Type:
Unshielded
Core Strands:
19/0.20 mm
Sheath Colour:
Blue
Insulation Wall Thickness:
0.3mm
Length:
30m
Resistant To:
Chemicals, Oils, Solvents
Insulation Material:
PTFE
Minimum Operating Temperature:
-60°C
Maximum Operating Temperature:
+200°C
Outer Diameter:
1.47mm
Wire Style:
UL1213
Cross Sectional Area:
0.62 mm²
Ratings:
UL Style 1213
HTSUS:
8544.49.3080
RoHS Status:
ROHS3 Compliant
Jacket (Insulation) Material:
Polytetrafluoroethylene (PTFE)
Conductor Strand:
19/32
Operating Temperature:
-60°C ~ 200°C
REACH Status:
REACH Unaffected
Package:
Spool
Wire Gauge:
20 AWG
Jacket (Insulation) Thickness:
0.010" (0.25mm)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Length:
100.0' (30.5m)
standardLeadTime:
27 Weeks
Features:
-
Jacket (Insulation) Diameter:
0.058" (1.47mm)
Conductor Material:
Copper, Silver Coated
Series:
MIL-W-16878/4 Type E
Cable Type:
Hook-Up
Voltage:
600V
ECCN:
EAR99
Base Product Number:
5856
Jacket Color:
Blue
