Dimensions:
15.75 x 5.15 x 20.15mm
Mounting Type:
Through Hole
Maximum Power Dissipation:
220 W
Maximum Collector Emitter Voltage:
1200 V
Channel Type:
N
Maximum Continuous Collector Current:
60 A
Maximum Gate Emitter Voltage:
±25V

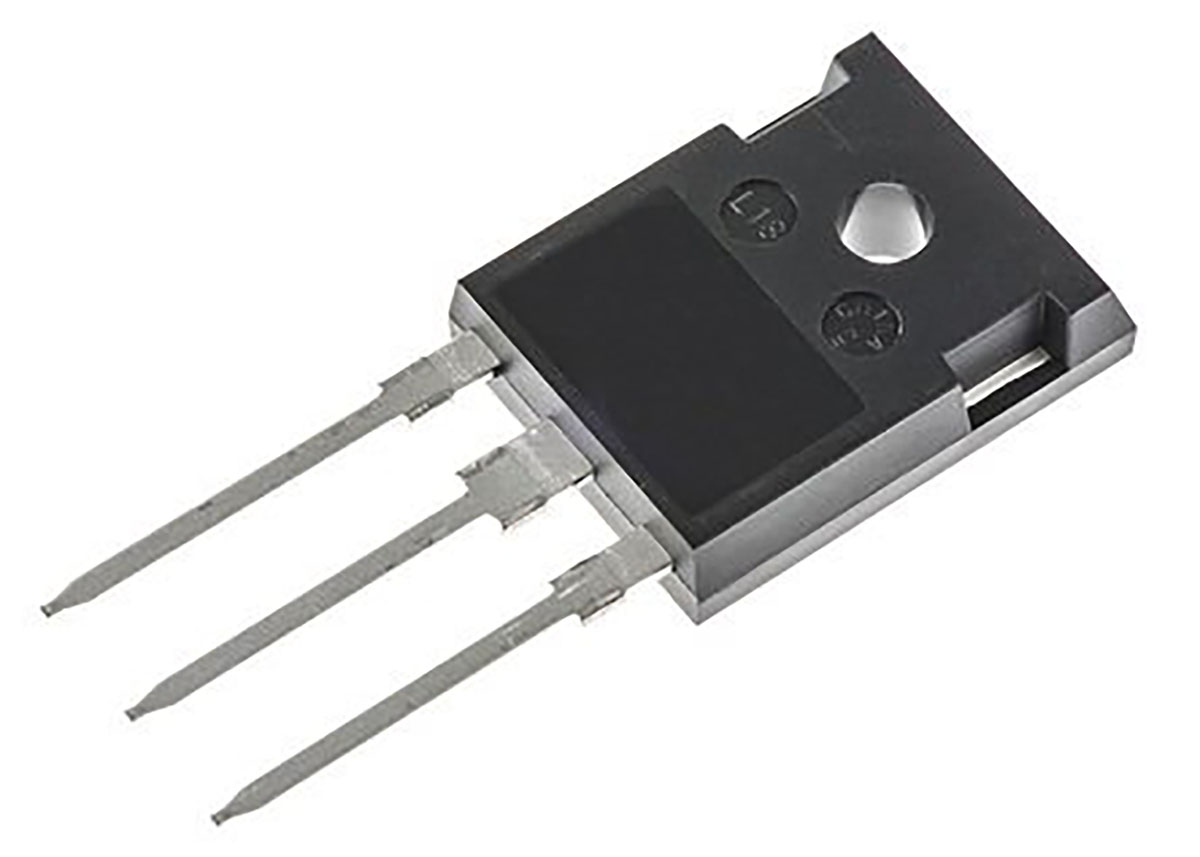

Package Type:
TO-247
Minimum Operating Temperature:
-55 °C
Switching Speed:
1MHz
Maximum Operating Temperature:
+150 °C
Pin Count:
3
Transistor Configuration:
Single
Current - Collector (Ic) (Max):
60 A
HTSUS:
8541.29.0095
RoHS Status:
ROHS3 Compliant
Switching Energy:
1.66mJ (on), 4.44mJ (off)
Vce(on) (Max) @ Vge, Ic:
2.75V @ 15V, 20A
Voltage - Collector Emitter Breakdown (Max):
1200 V
Td (on/off) @ 25°C:
29ns/275ns
Operating Temperature:
-55°C ~ 150°C (TJ)
Input Type:
Standard
Package / Case:
TO-247-3
Gate Charge:
110 nC
Reverse Recovery Time (trr):
152 ns
REACH Status:
REACH Unaffected
Test Condition:
960V, 20A, 10Ohm, 15V
Package:
Tube
Moisture Sensitivity Level (MSL):
1 (Unlimited)
standardLeadTime:
52 Weeks
IGBT Type:
-
Mounting Type:
Through Hole
Series:
PowerMESH™
Supplier Device Package:
TO-247-3
Power - Max:
220 W
Base Product Number:
STGW30
ECCN:
EAR99
