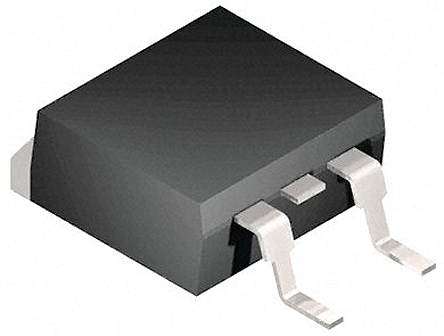

STMicroelectronics STGB20N45LZAG IGBT, 25 A 475 V, 3-Pin D2PAK, Surface Mount

Enrgtech Part No: ET14745758
|
Manufacturer Part No:
STGB20N45LZAG
|
Manufacturer: Stmicroelectronics

STGB20N45LZAG STMicroelectronics IGBT, 25 A 475 V, 3-Pin D2PAK, Surface Mount

(0)

Product Information

Pin Count:

Dimensions:

10.4 x 4.6 x 9.35mm

Channel Type:

Package Type:

D2PAK

Energy Rating:

300mJ

Mounting Type:

Surface Mount

Gate Capacitance:

1011pF

Automotive Standard:

AEC-Q101

Number of Transistors:

Transistor Configuration:

Single

Maximum Power Dissipation:

150 W

Maximum Gate Emitter Voltage:

16V

Pre-order

Estimated Lead Time: 7-13 weeks

Each

Quantity

Unit Price (ex VAT)

Price

1000

£ 1.55

£ 1550.00

Mfr Part No:

STGB20N45LZAG

Seller:

Stmicroelectronics

Origin:

Warranty:

Manufacturer

Data Code:

ET14745758

Order Today!

From: United Kingdom

Quantity Quantity

This is STMicroelectronics IGBT 25 A 475 V 3-Pin D2PAK Surface Mount manufactured by Stmicroelectronics. The manufacturer part number is STGB20N45LZAG. The given dimensions of the product include 10.4 x 4.6 x 9.35mm. The product is available in [Cannel Type] channel. The product is available in surface mount configuration. It has a maximum operating temperature of +175 °c. Whereas, the minimum operating temperature of the product is -55 °c.

0900766b8160a43c.pdf(RS)

0900766b8162030a.pdf(RS)

0900766b81644faf.pdf(RS)
