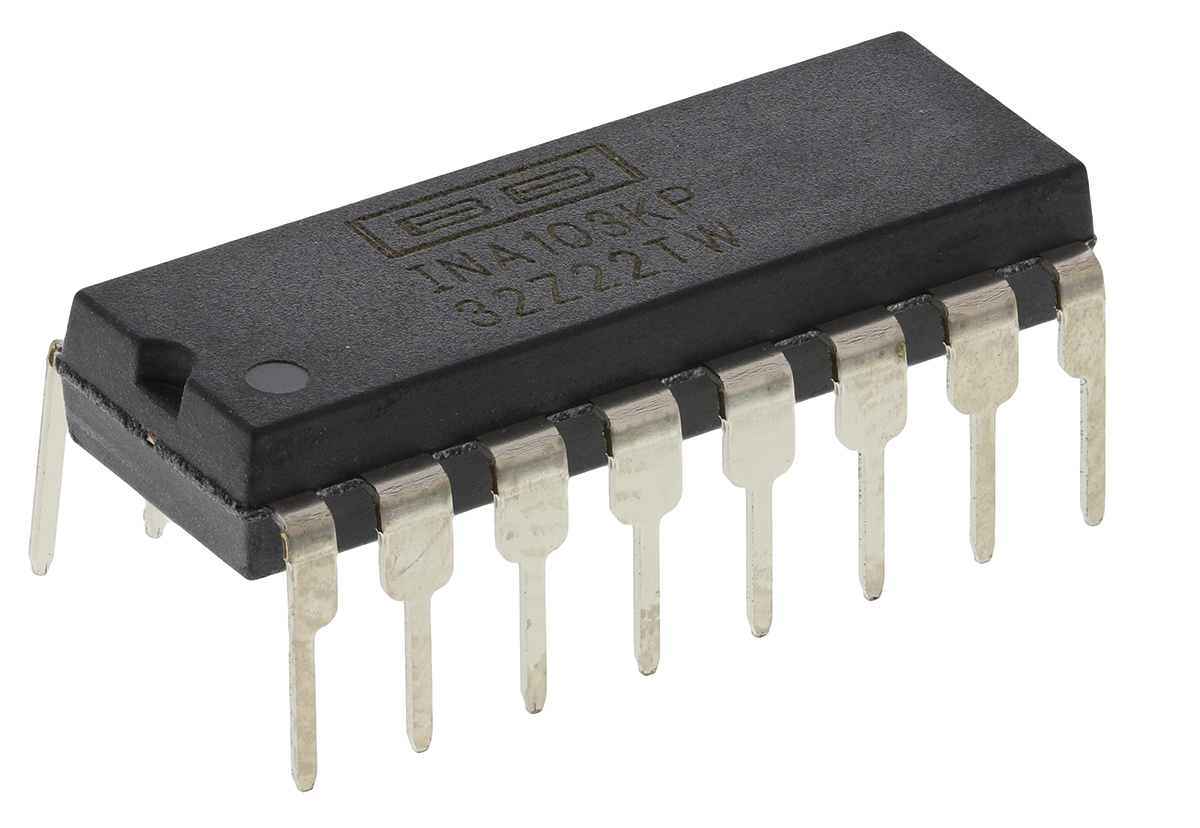

Texas Instruments INA103KP

INA103KP Texas Instruments
INA103KP
Texas Instruments

Product Information

Minimum CMRR:
100dB
Maximum Input Offset Voltage:
30µV
Typical Dual Supply Voltage:
±15V
Dimensions:
19.3 x 6.35 x 4.57mm
Mounting Type:
Through Hole
Maximum Input Resistance:
0.06GΩ
Power Supply Type:
Dual
Typical Gain Bandwidth Product:
6MHz
Height:
4.57mm
Width:
6.35mm
Length:
19.3mm
Package Type:
PDIP
Minimum Operating Temperature:
-40 °C
Maximum Operating Temperature:
+85 °C
Pin Count:
16
HTSUS:
8542.33.0001
-3db Bandwidth:
6 MHz
Current - Output / Channel:
40 mA
Operating Temperature:
0°C ~ 70°C
Package / Case:
16-DIP (0.300", 7.62mm)
Current - Input Bias:
2.5 µA
Voltage - Supply Span (Max):
50 V
Voltage - Supply Span (Min):
18 V
Output Type:
-
Current - Supply:
9mA
Package:
Bulk
Slew Rate:
15V/µs
Voltage - Input Offset:
30 µV
Number of Circuits:
1
Gain Bandwidth Product:
240 kHz
Mounting Type:
Through Hole
Series:
-
Supplier Device Package:
16-PDIP
Amplifier Type:
Instrumentation
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is manufactured by Texas Instruments. The manufacturer part number is INA103KP. The given dimensions of the product include 19.3 x 6.35 x 4.57mm. The product is available in through hole configuration. In addition, the height is 4.57mm. Furthermore, the product is 6.35mm wide. Its accurate length is 19.3mm. Whereas, the minimum operating temperature of the product is -40 °c. It has a maximum operating temperature of +85 °c. It is assigned with possible HTSUS value of 8542.33.0001. A 6 mhz of bandwidth. It carries 40 ma output or channel current. The product has 0°c ~ 70°c operating temperature range. Moreover, the product comes in [Package/ Case]. The typical current - input bias includes 2.5 µa. The maximum voltage supply span of the product is 50 v. While the minimum voltage supply is 18 v. The current - supply of a bespoke product is 9ma. It is shipped in bulk. The 15v/µs is the slew rate of the product. The input offset voltage is 30 µv. It integrates 1 circuits. The gain bandwidth product is 240 khz. 16-pdip is the supplier device package value. It is a sort of a instrumentation amplifier. The product is designated with the ear99 code number
