Maximum Low Level Output Current:
8mA
Dimensions:
2.9 x 1.6 x 1.15mm
Mounting Type:
Surface Mount
Number of Inputs per Gate:
2
Minimum Operating Supply Voltage:
2 V
Logic Function:
AND
Logic Family:
AHC
Height:
1.15mm
Width:
1.6mm
Length:
2.9mm

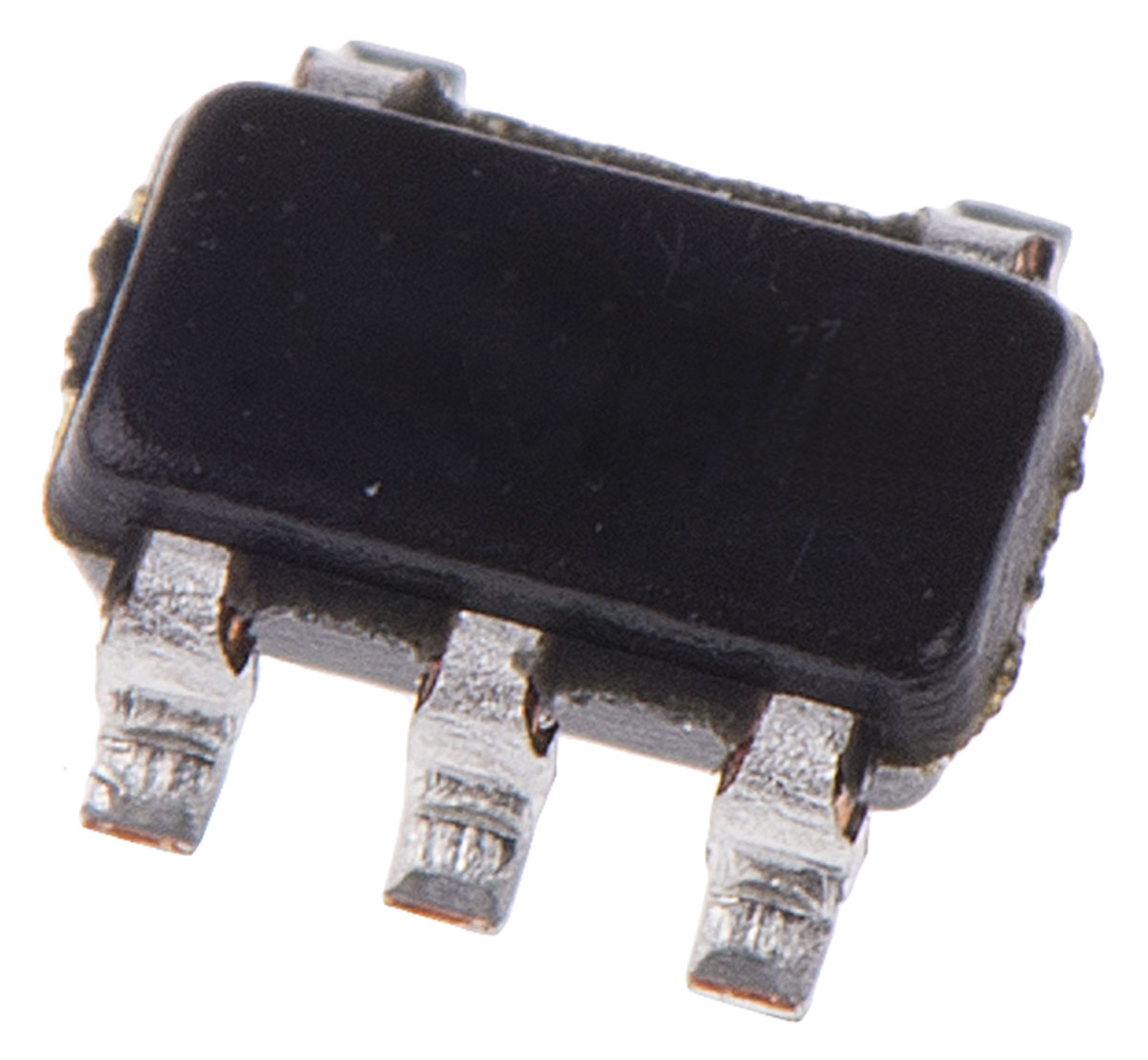

Package Type:
SOT-23
Propagation Delay Test Condition:
50pF
Minimum Operating Temperature:
-40 °C
Maximum Propagation Delay Time @ Maximum CL:
12.3 ns @ 3.3 V, 7.9 ns @ 5 V
Maximum Operating Supply Voltage:
5.5 V
Number of Elements:
1
Maximum Operating Temperature:
+85 °C
Pin Count:
5
Maximum High Level Output Current:
-8mA
Number of Inputs:
2
HTSUS:
8542.39.0001
RoHS Status:
ROHS3 Compliant
Current - Quiescent (Max):
1 µA
Operating Temperature:
-55°C ~ 125°C
Package / Case:
SC-74A, SOT-753
Input Logic Level - Low:
0.5V ~ 1.65V
Input Logic Level - High:
1.5V ~ 3.85V
REACH Status:
REACH Unaffected
Max Propagation Delay @ V, Max CL:
7.9ns @ 5V, 50pF
Package:
Tape & Reel (TR)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
standardLeadTime:
6 Weeks
Number of Circuits:
1
Features:
-
Mounting Type:
Surface Mount
Series:
74AHC
Logic Type:
AND Gate
Supplier Device Package:
SOT-23-5
Voltage - Supply:
2V ~ 5.5V
Current - Output High, Low:
8mA, 8mA
Base Product Number:
74AHC1G08
ECCN:
EAR99
