Dimensions:
19.69 x 6.6 x 4.57mm
Logic Family:
4000
Width:
6.6mm
Input Type:
CMOS
Maximum Low Level Output Current:
4.2mA
Maximum High Level Output Current:
-4.2mA
Maximum Propagation Delay Time @ Maximum CL:
250 ns @ 50 pF
Minimum Operating Supply Voltage:
3 V
Output Type:
CMOS
Package Type:
PDIP
Maximum Operating Temperature:
+125 °C
Number of Inputs per Gate:
4
Length:
19.69mm
Pin Count:
14
Maximum Operating Supply Voltage:
18 V
Mounting Type:
Through Hole
Logic Function:
OR
Height:
4.57mm
Minimum Operating Temperature:
-55 °C
Schmitt Trigger Input:
No
Number of Elements:
2
Propagation Delay Test Condition:
50pF
Number of Inputs:
4
HTSUS:
8542.39.0001
RoHS Status:
ROHS3 Compliant
Current - Quiescent (Max):
1 µA
Operating Temperature:
-55°C ~ 125°C
Package / Case:
14-DIP (0.300", 7.62mm)
Input Logic Level - Low:
1.5V ~ 4V
Input Logic Level - High:
3.5V ~ 11V
REACH Status:
REACH Unaffected
Max Propagation Delay @ V, Max CL:
90ns @ 15V, 50pF
Package:
Tube
Moisture Sensitivity Level (MSL):
1 (Unlimited)
standardLeadTime:
6 Weeks
Number of Circuits:
2
Features:
-
Mounting Type:
Through Hole
Series:
4000B
Logic Type:
OR Gate
Supplier Device Package:
14-PDIP
Voltage - Supply:
3V ~ 18V
Current - Output High, Low:
3.4mA, 3.4mA
Base Product Number:

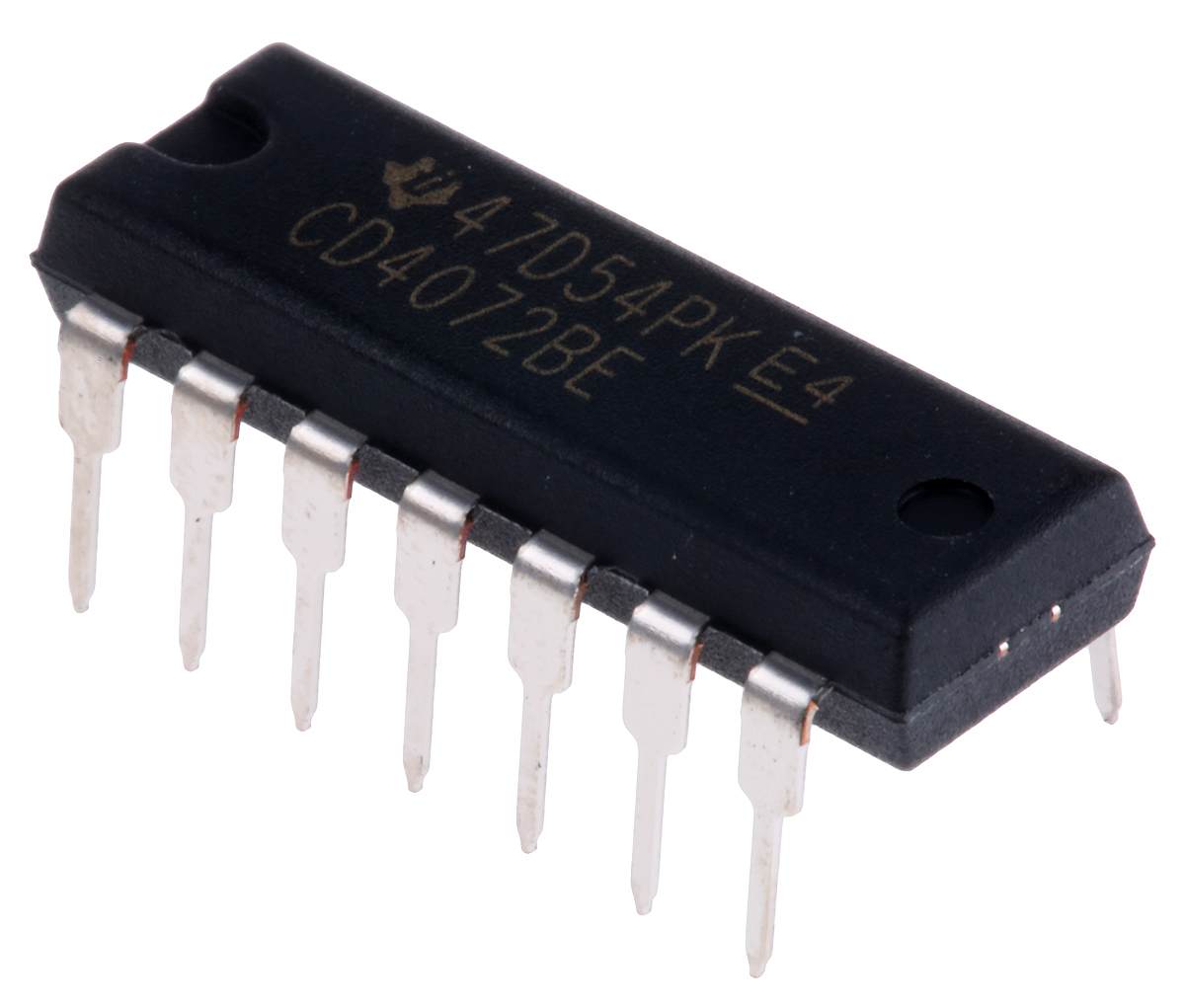

CD4072
ECCN:
EAR99
