Maximum Continuous Drain Current:
2.2 A
Transistor Material:
Si
Width:
6.2mm
Transistor Configuration:
Single
Maximum Drain Source Voltage:
1000 V

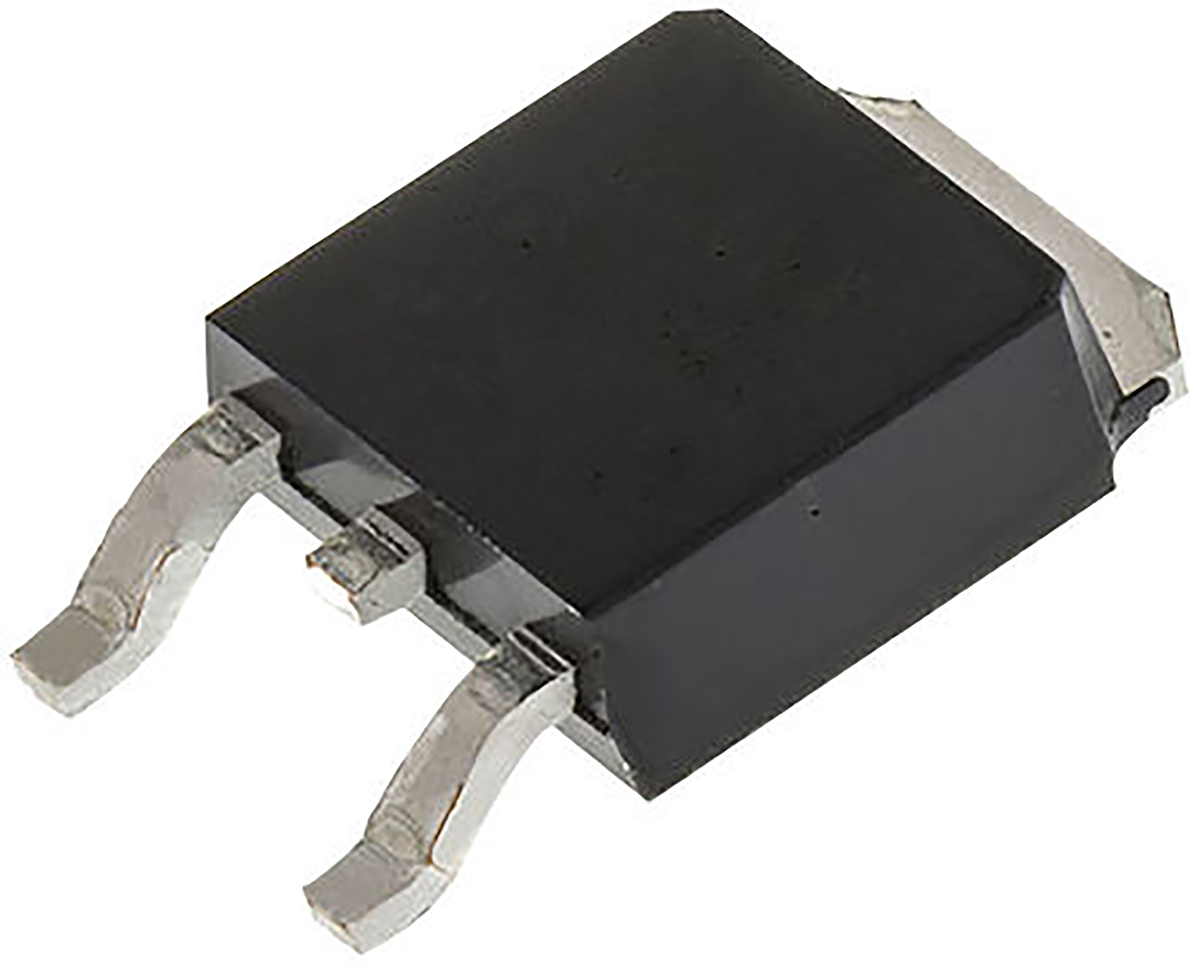

Package Type:
DPAK (TO-252)
Number of Elements per Chip:
1
Maximum Operating Temperature:
+150 °C
Typical Gate Charge @ Vgs:
18 nC @ 10 V
Channel Type:
N
Length:
6.6mm
Pin Count:
3
Channel Mode:
Enhancement
Mounting Type:
Surface Mount
Maximum Power Dissipation:
90 W
Series:
MDmesh, SuperMESH
Maximum Gate Source Voltage:
-30 V, +30 V
Height:
2.4mm
Minimum Operating Temperature:
-55 °C
Forward Diode Voltage:
1.6V
Maximum Drain Source Resistance:
6.8 Ω
FET Feature:
-
HTSUS:
8541.29.0095
Vgs(th) (Max) @ Id:
4.5V @ 50µA
Operating Temperature:
-55°C ~ 150°C (TJ)
Package / Case:
TO-252-3, DPak (2 Leads + Tab), SC-63
Rds On (Max) @ Id, Vgs:
6.8Ohm @ 1.1A, 10V
Gate Charge (Qg) (Max) @ Vgs:
18 nC @ 10 V
RoHS Status:
ROHS3 Compliant
REACH Status:
REACH Unaffected
FET Type:
N-Channel
Drive Voltage (Max Rds On, Min Rds On):
10V
Package:
Tape & Reel (TR)
Drain to Source Voltage (Vdss):
1000 V
Vgs (Max):
±30V
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Power Dissipation (Max):
90W (Tc)
Input Capacitance (Ciss) (Max) @ Vds:
601 pF @ 25 V
standardLeadTime:
50 Weeks
Mounting Type:
Surface Mount
Series:
Automotive, AEC-Q101, SuperMESH™
Supplier Device Package:
DPAK
Current - Continuous Drain (Id) @ 25°C:
2.2A (Tc)
Technology:
MOSFET (Metal Oxide)
Base Product Number:
STD4NK100
ECCN:
EAR99
