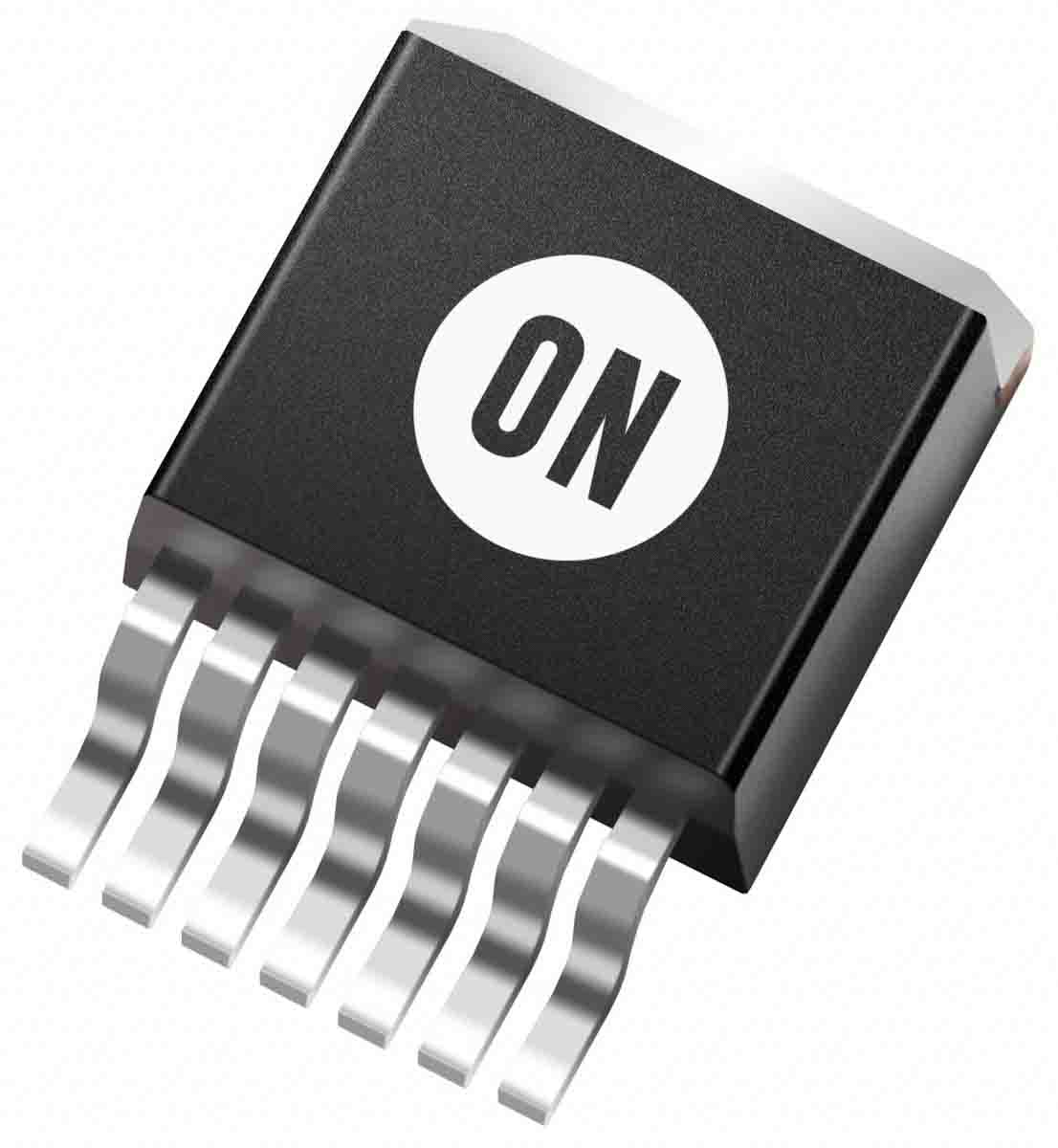

N-Channel MOSFET Transistor & Diode, 19.5 A, 1200 V, 7-Pin D2PAK-7L ON Semiconductor NTBG160N120SC1

Enrgtech Part No: ET21579534
|
Manufacturer Part No:
NTBG160N120SC1
|
Manufacturer: onsemi

NTBG160N120SC1 N-Channel MOSFET Transistor & Diode, 19.5 A, 1200 V, 7-Pin D2PAK-7L ON Semiconductor

(0)

Product Information

Maximum Drain Source Voltage:

1200 V

Mounting Type:

Surface Mount

Channel Mode:

Enhancement

Series:

NTB

Channel Type:

Maximum Gate Threshold Voltage:

4.3V

Maximum Drain Source Resistance:

225 mΩ

Package Type:

D2PAK (TO-263)

Number of Elements per Chip:

Maximum Continuous Drain Current:

19.5 A

Transistor Material:

Pin Count:

warehouse-1

800 - In Stock

Available in stock

Each (On a Reel of 800)

Quantity

Unit Price (ex VAT)

Price

800

£ 3.62

£ 2896.00

Mfr Part No:

NTBG160N120SC1

Seller:

onsemi (warehouse-1)

Origin:

Warranty:

Manufacturer

Data Code:

ET21579534

Order Today!

From: United Kingdom

Est Ship Date: 28 Sep, 2026

Est Fastest Delivery: 29 Sep, 2026

Quantity Quantity

This is N-Channel MOSFET Transistor & Diode 19.5 A 1200 V 7-Pin D2PAK-7L ON Semiconductor manufactured by onsemi. The manufacturer part number is NTBG160N120SC1. The product is available in surface mount configuration. The product ntb, is a highly preferred choice for users. The product is available in [Cannel Type] channel. It is assigned with possible HTSUS value of 8541.29.0095. The typical Vgs (th) (max) of the product is 4.3v @ 2.5ma. The product has -55°c ~ 175°c (tj) operating temperature range. Moreover, the product comes in [Package/ Case]. It has a maximum Rds On and voltage of 224mohm @ 12a, 20v. The maximum gate charge and given voltages include 33.8 nc @ 20 v. The product is rohs3 compliant. In addition, it is reach unaffected. It carries FET type n-channel. The drive voltage (maximum and minimum Rds On) of the product includes 20v. It is shipped in tape & reel (tr). The product has a 1200 v drain to source voltage. The maximum Vgs rate is +25v, -15v. Its typical moisture sensitivity level is 1 (unlimited). The product carries maximum power dissipation 136w (tc). The product's input capacitance at maximum includes 678 pf @ 800 v. It has a long 29 weeks standard lead time. d2pak-7 is the supplier device package value. The continuous current drain at 25°C is 19.5a (tc). This product use sicfet (silicon carbide) technology. Moreover, it corresponds to ntbg160, a base product number of the product. The product is designated with the ear99 code number

Datasheet - NTBG160N120SC1(Technical Reference)

NTBGxx 14/Dec/2022(PCN Assembly/Origin)

NTBG160N120SC1(Datasheets)

onsemi RoHS(Environmental Information)

onsemi REACH(Environmental Information)
