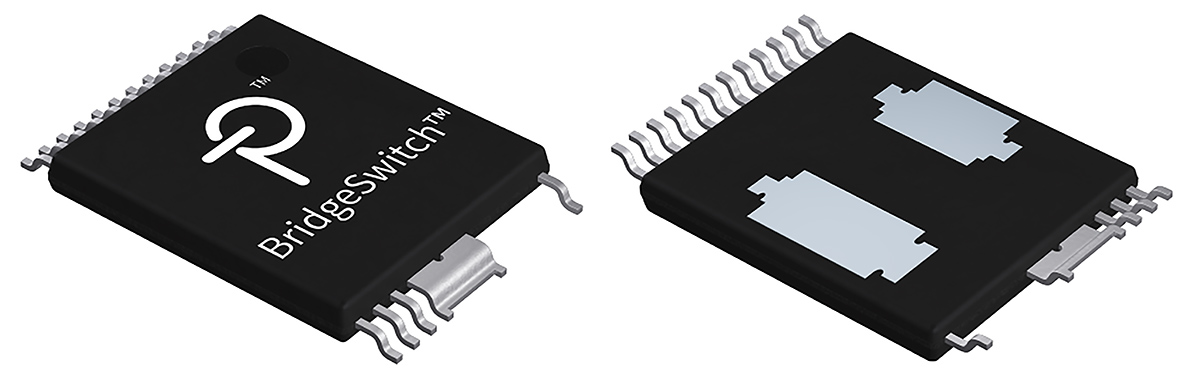

Product Height:
1.45mm
Configuration:
H Bridge
Maximum Operating Temperature:
+150 °C
Dimensions:
9.4 x 10.8 x 1.45mm
Mounting Type:
Surface Mount
Product Length:
9.4mm
Series:
BRD
Height:
1.45mm
Product Width:
10.8mm
Width:
10.8mm
Length:
9.4mm
Package Type:
InSOP-C
Typical Switching Frequency:
20kHz
Minimum Operating Temperature:
-40 °C
Output Configuration:
Half Bridge
Motor Type:
AC Induction, BLDC Motor, PMSM Motor
Maximum Output Current:
5.5A
Pin Count:
24
HTSUS:
8542.39.0001
RoHS Status:
RoHS Compliant
Current - Output / Channel:
5.5A
Supplier Device Package:
InSOP-24C
Operating Temperature:
-40°C ~ 150°C (TJ)
Package / Case:
24-PowerSMD Module (0.425", 10.80mm Width), 17 Leads
Applications:
DC Motors, General Purpose
Interface:
Analog, Logic, PWM
Package:
Tape & Reel (TR)
Load Type:
Capacitive and Resistive
Moisture Sensitivity Level (MSL):
3 (168 Hours)
standardLeadTime:
8 Weeks
Features:
Bootstrap Circuit
Mounting Type:
Surface Mount
Series:
BridgeSwitch
Voltage - Load:
600V
Fault Protection:
Current Limiting, Over Temperature, Over Voltage
Voltage - Supply:
-
Current - Peak Output:
-
Rds On (Typ):
830mOhm LS, 830mOhm HS
Output Configuration:
Half Bridge
Technology:
Power MOSFET
Base Product Number:
BRD1265
ECCN:
EAR99
