Dimensions:
2.2 x 1.35 x 1mm
Typical Slew Rate:
2.7V/ms
Rail to Rail:
Rail to Rail Input/Output
Width:
1.35mm
Input Offset Current:
0.05nA
Power Supply Type:
Single
Number of Channels per Chip:
1
Output Type:
CMOS

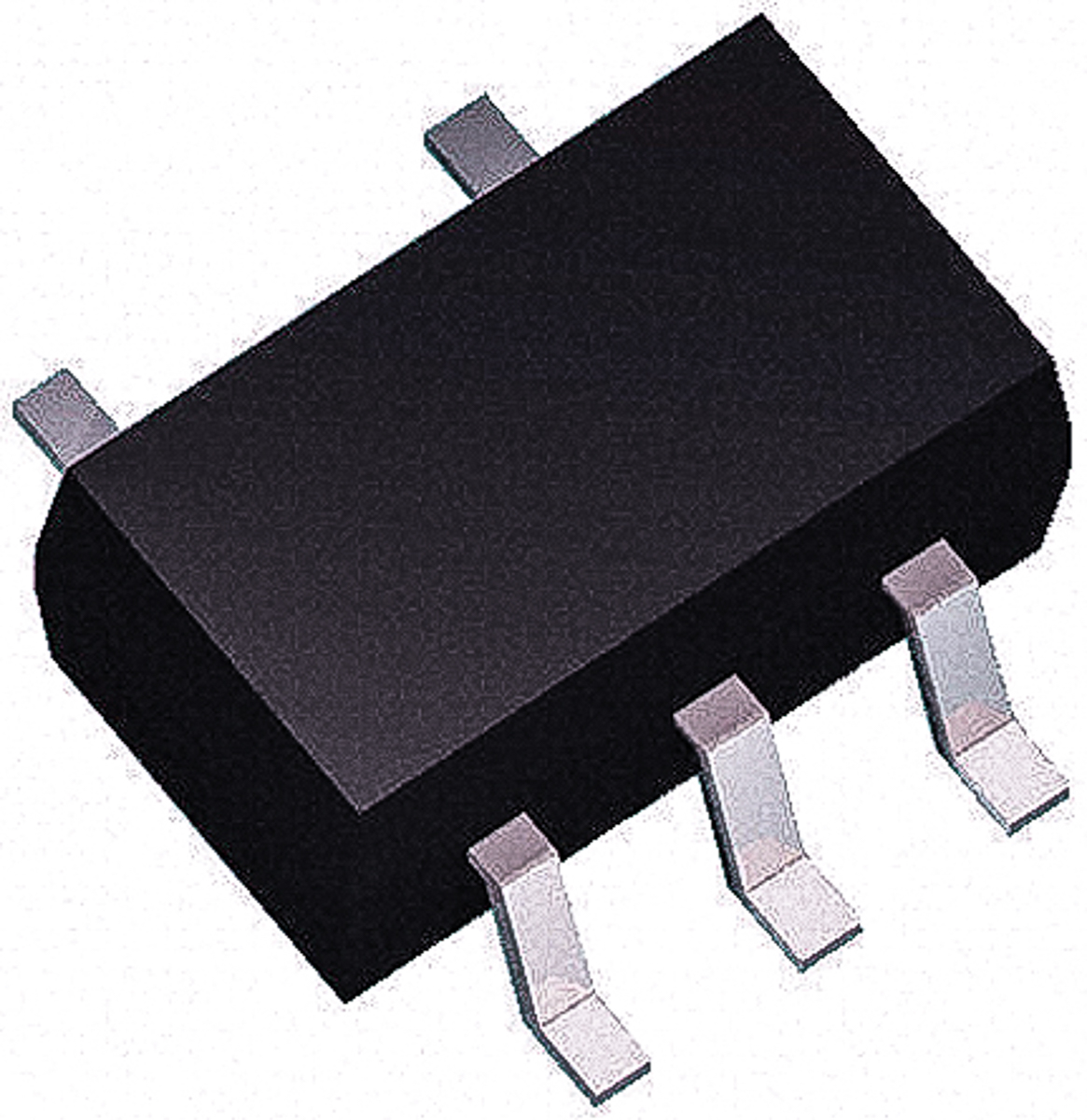

Package Type:
SC-70
Typical Voltage Gain:
135 dB
Maximum Operating Temperature:
+85 °C
Typical Gain Bandwidth Product:
11.5kHz
Length:
2.2mm
Pin Count:
5
Offset Voltage:
235µV
Typical Input Voltage Noise Density:
220nV/√Hz
Mounting Type:
Surface Mount
Output Current:
41 mA, 45 mA
Input Voltage Range:
1.5 → 5.5 V
Typical Single Supply Voltage:
5 V
Height:
1mm
Minimum Operating Temperature:
-40 °C
Amplifier Type:
Low Power
Maximum Input Voltage:
5.5 V
Minimum Input Voltage:
1.5 V
HTSUS:
8542.33.0001
RoHS Status:
ROHS3 Compliant
Current - Output / Channel:
45 mA
Operating Temperature:
-40°C ~ 85°C
Package / Case:
5-TSSOP, SC-70-5, SOT-353
Current - Input Bias:
10 pA
Voltage - Input Offset:
150 µV
Voltage - Supply Span (Max):
5.5 V
Voltage - Supply Span (Min):
1.5 V
REACH Status:
REACH Unaffected
Output Type:
-
Current - Supply:
950nA
Package:
Tape & Reel (TR)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Slew Rate:
0.0027V/µs
standardLeadTime:
40 Weeks
Number of Circuits:
1
Gain Bandwidth Product:
11.5 kHz
Mounting Type:
Surface Mount
Series:
-
Supplier Device Package:
SC-70-5
Amplifier Type:
CMOS
Base Product Number:
TSU111
ECCN:
EAR99
