Typical Input Voltage Noise Density:
25nV/√Hz
Typical Gain Bandwidth Product:
5.5MHz
Dimensions:
8.65 x 3.91 x 1.58mm
Mounting Type:
Surface Mount
Typical Slew Rate:
6V/µs
Power Supply Type:
Single
Number of Channels per Chip:
4
Rail to Rail:
Rail to Rail Input/Output
Height:
1.58mm
Typical Single Supply Voltage:
3 V, 5 V
Width:
3.91mm
Length:
8.65mm
Package Type:
SOIC
Minimum Operating Temperature:
-40 °C
Amplifier Type:
Precision
Typical Voltage Gain:
124 dB
Maximum Operating Temperature:
+85 °C
Pin Count:
14
HTSUS:
8542.33.0001
RoHS Status:
ROHS3 Compliant
Current - Output / Channel:
50 mA
Operating Temperature:
-40°C ~ 85°C
Package / Case:
14-SOIC (0.154", 3.90mm Width)
Current - Input Bias:
0.2 pA
Voltage - Input Offset:
150 µV
Voltage - Supply Span (Max):
5.5 V
Voltage - Supply Span (Min):
2.5 V
REACH Status:
REACH Unaffected
Output Type:
Rail-to-Rail
Current - Supply:
750µA (x4 Channels)
Package:
Tube
Moisture Sensitivity Level (MSL):
3 (168 Hours)
Slew Rate:
6V/µs
standardLeadTime:
12 Weeks
Number of Circuits:
4
Gain Bandwidth Product:
5.5 MHz
Mounting Type:
Surface Mount
Series:
microPOWER™
Supplier Device Package:
14-SOIC
Amplifier Type:
CMOS
Base Product Number:
OPA4340
ECCN:
EAR99

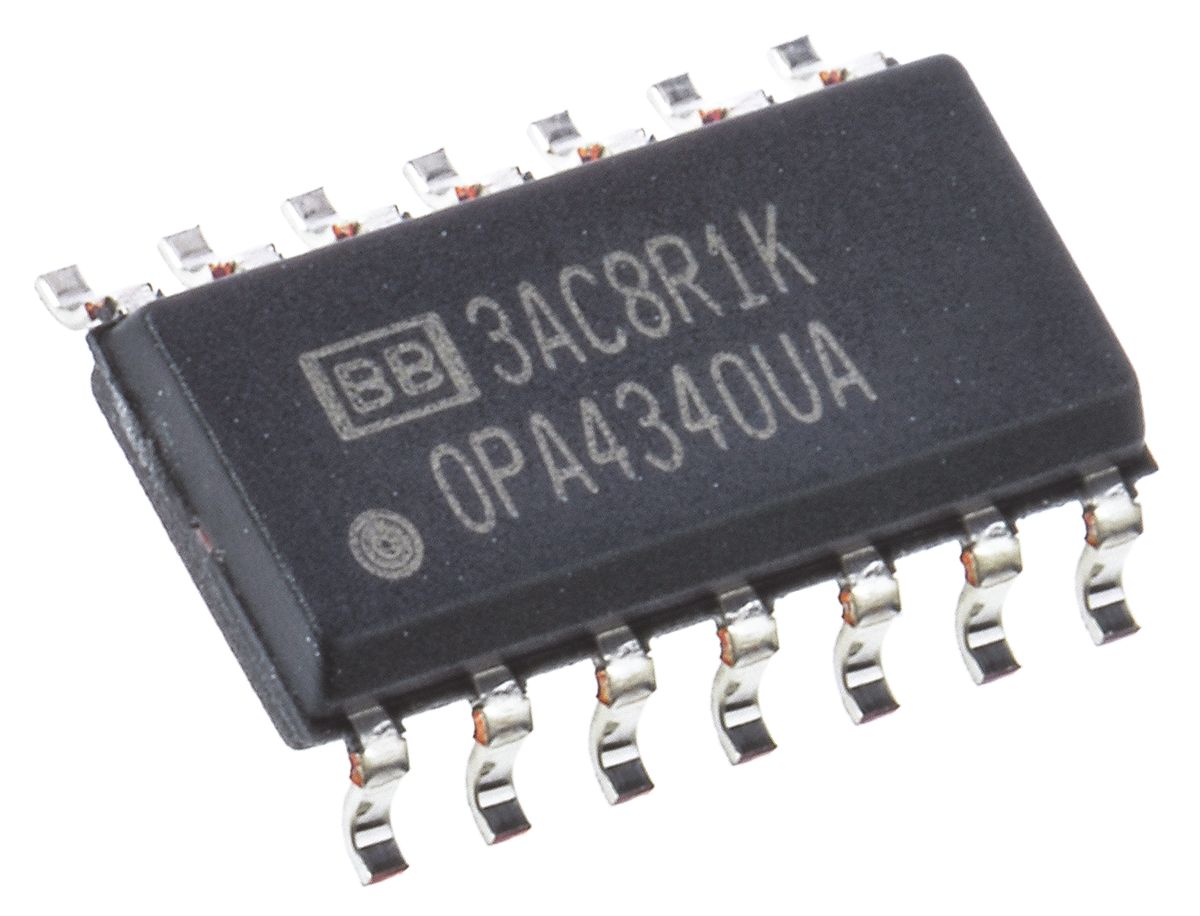

This is Precision Op Amp RRIO 5.5MHz 3 V 5 V 14-Pin SOIC manufactured by Texas Instruments. The manufacturer part number is OPA4340UA. The given dimensions of the product include 8.65 x 3.91 x 1.58mm. The product is available in surface mount configuration. In addition, the height is 1.58mm. Furthermore, the product is 3.91mm wide. Its accurate length is 8.65mm. Whereas, the minimum operating temperature of the product is -40 °c. It is a sort of a precision amplifier. It has a maximum operating temperature of +85 °c. It is assigned with possible HTSUS value of 8542.33.0001. The product is rohs3 compliant. It carries 50 ma output or channel current. The product has -40°c ~ 85°c operating temperature range. Moreover, the product comes in [Package/ Case]. The typical current - input bias includes 0.2 pa. The input offset voltage is 150 µv. The maximum voltage supply span of the product is 5.5 v. While the minimum voltage supply is 2.5 v. In addition, it is reach unaffected. Furthermore, it has arail-to-rail output. The current - supply of a bespoke product is 750µa (x4 channels). It is shipped in tube. Its typical moisture sensitivity level is 3 (168 hours). The 6v/µs is the slew rate of the product. It has a long 12 weeks standard lead time. It integrates 4 circuits. The gain bandwidth product is 5.5 mhz. The product micropower™, is a highly preferred choice for users. 14-soic is the supplier device package value. It is a sort of a cmos amplifier. Moreover, it corresponds to opa4340, a base product number of the product. The product is designated with the ear99 code number
