Typical Input Voltage Noise Density:
9nV/√Hz
Typical Gain Bandwidth Product:
4MHz
Dimensions:
4.9 x 3.9 x 1.25mm
Mounting Type:
Surface Mount
Typical Slew Rate:
1.3V/µs
Power Supply Type:
Single
Number of Channels per Chip:
2
Rail to Rail:
Rail to Rail Input/Output
Height:
1.25mm
Typical Single Supply Voltage:
3 → 9 V
Width:
3.9mm
Length:
4.9mm

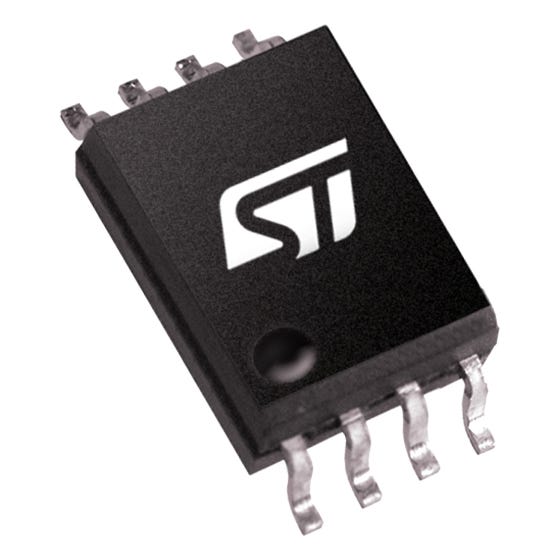

Package Type:
SOIC
Minimum Operating Temperature:
-40 °C
Amplifier Type:
Audio
Typical Voltage Gain:
106 dB
Maximum Operating Temperature:
+125 °C
Pin Count:
8
HTSUS:
8542.33.0001
RoHS Status:
ROHS3 Compliant
Current - Output / Channel:
80 mA
Operating Temperature:
-40°C ~ 125°C
Package / Case:
8-SOIC (0.154", 3.90mm Width)
Current - Input Bias:
15 nA
Voltage - Input Offset:
3 mV
Voltage - Supply Span (Max):
12 V
Voltage - Supply Span (Min):
2.7 V
REACH Status:
REACH Unaffected
Output Type:
Rail-to-Rail
Current - Supply:
2mA
Package:
Tube
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Slew Rate:
1.3V/µs
standardLeadTime:
26 Weeks
Number of Circuits:
2
Gain Bandwidth Product:
4 MHz
Mounting Type:
Surface Mount
Series:
Automotive, AEC-Q100
Supplier Device Package:
8-SOIC
Amplifier Type:
General Purpose
Base Product Number:
TS922
ECCN:
EAR99
