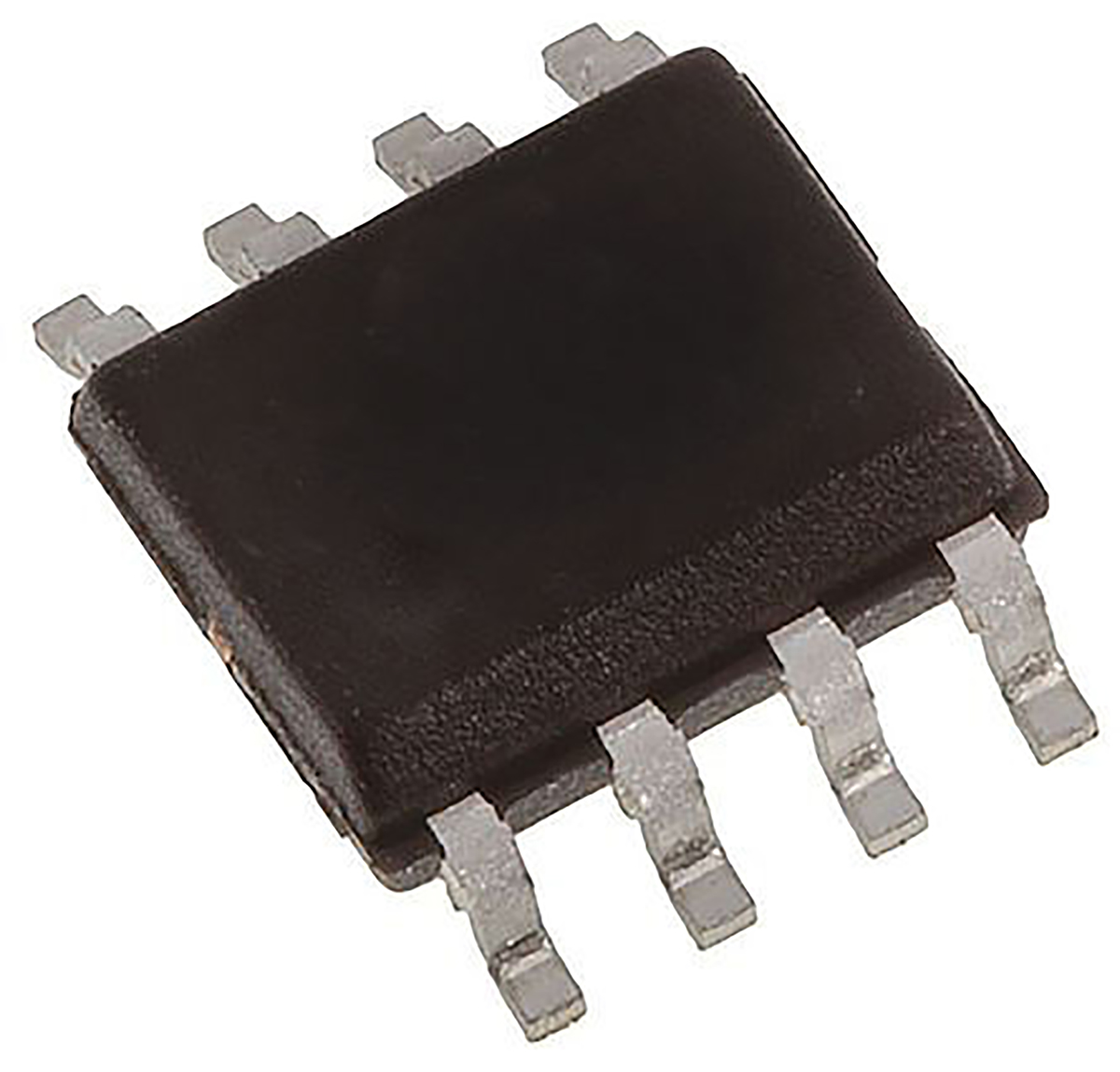

STMicroelectronics UC2842BD1, PWM Controller, 30 V, 500 kHz 8-Pin, SOIC

UC2842BD1 STMicroelectronics , PWM Controller, 30 V, 500 kHz 8-Pin, SOIC
UC2842BD1
UC2842BD1 STMicroelectronics , PWM Controller, 30 V, 500 kHz 8-Pin, SOIC
Stmicroelectronics

Product Information

Width:
4mm
Height:
1.65mm
Length:
5mm
Topology:
Boost, Flyback
Fall Time:
150ns
Pin Count:
8
Rise Time:
150ns
Dimensions:
5 x 4 x 1.65mm
Package Type:
SOIC
Mounting Type:
Surface Mount
Control Method:
Current
Output Current:
±1 A
Output Voltage:
5.05 V
Number of Outputs:
1
Maximum Duty Cycle:
100%
PWM Controller Type:
Current Mode
Maximum Switching Frequency:
500 kHz
Maximum Operating Temperature:
+150 °C
Minimum Operating Temperature:
-40 °C
Maximum Operating Supply Voltage:
30 V
RoHs Compliant
2000 - In Stock

In Stock

Each

Quantity
Unit Price (ex VAT)
Price
100
£ 0.64
£ 64.00
200
£ 0.61
£ 122.00
500
£ 0.55
£ 275.00
Mfr Part No:
UC2842BD1
Seller:
Stmicroelectronics
Origin:
Warranty:
Manufacturer
Data Code:
ET13959743
Order Today!
From: United Kingdom
Est Ship Date: 03 Sep, 2026
Est Fastest Delivery: 04 Sep, 2026

This is STMicroelectronics PWM Controller 30 V 500 kHz 8-Pin SOIC manufactured by Stmicroelectronics. The manufacturer part number is UC2842BD1. Furthermore, the product is 4mm wide. In addition, the height is 1.65mm. Its accurate length is 5mm. Topology includes boost, flyback. The given dimensions of the product include 5 x 4 x 1.65mm. The product is available in surface mount configuration. Additionally, the product is supplied with 1 outputs. It has a maximum operating temperature of +150 °c. Whereas, the minimum operating temperature of the product is -40 °c.
