Mounting Type:
Surface Mount
Maximum Continuous Forward Current:
10A
Package Type:
TO-263AB
Number of Elements per Chip:
2
Diode Configuration:
2x Common Cathode Pair
Pin Count:
3
Peak Reverse Repetitive Voltage:
300V
HTSUS:
8541.10.0080
RoHS Status:
RoHS Compliant
Package / Case:
TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Diode Configuration:
1 Pair Common Cathode
Reverse Recovery Time (trr):
12.6 ns
Operating Temperature - Junction:
150°C (Max)
REACH Status:
REACH Unaffected
Speed:
Fast Recovery =< 500ns, > 200mA (Io)
Voltage - Forward (Vf) (Max) @ If:
1.9 V @ 10 A
Package:
Tape & Reel (TR)
Voltage - DC Reverse (Vr) (Max):
300 V
Moisture Sensitivity Level (MSL):
2 (1 Year)
Current - Average Rectified (Io) (per Diode):
10A
standardLeadTime:
8 Weeks
Current - Reverse Leakage @ Vr:
25 µA @ 300 V
Mounting Type:
Surface Mount

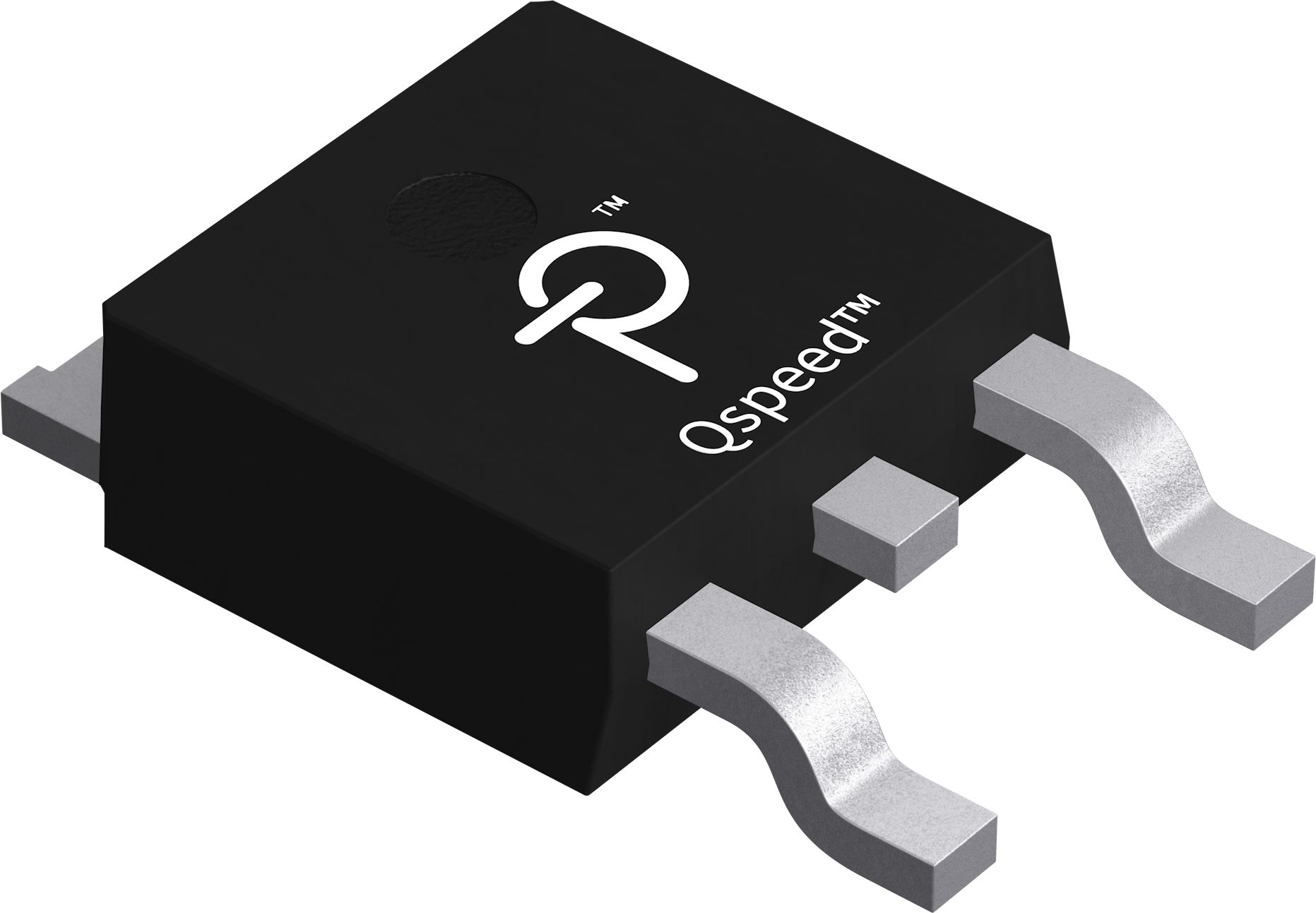

Series:
Qspeed™
Supplier Device Package:
TO-263AB
Technology:
Standard
Base Product Number:
LQA20
ECCN:
EAR99
