Depth:
7.5mm
Height:
9.4mm
Length:
15mm

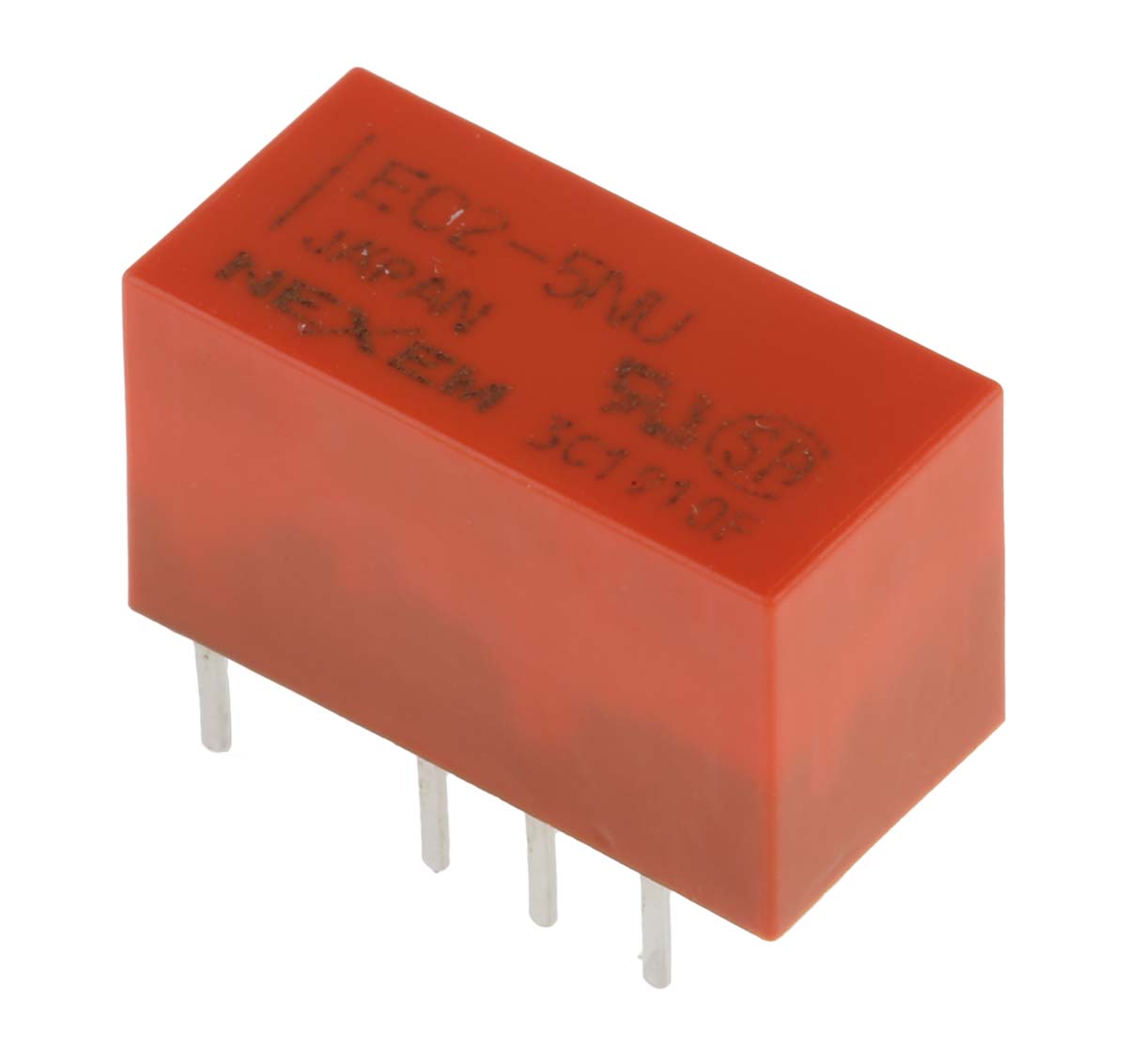

Series:
EC2
Features:
Compact and Lightweight, Low Magnetic Interference, Low Power Consumption
Latching:
No
Coil Power:
140mW
Dimensions:
15 x 7.5 x 9.4mm
Application:
Electronic Switching Systems, PBX, Telecommunications, Terminal Equipment
Coil Voltage:
5V dc
Mounting Type:
PCB Mount
Standards Met:
CSA, UL Recognized E73266
Terminal Type:
Through Hole
Coil Resistance:
178Ω
Number of Poles:
2
Contact Material:
Gold Plated
Switching Current:
2A
Contact Configuration:
DPDT
Isolation Coil To Contact:
1.5kV ac
Maximum Switching Power AC:
125VA
Maximum Switching Power DC:
60 W
Operating Temperature Range:
-40 → +85°C
Maximum Switching Current AC:
2 A
Maximum Switching Current DC:
2 A
Maximum Switching Voltage AC:
250V ac
Maximum Switching Voltage DC:
220V dc
Maximum Operating Temperature:
+85°C
Minimum Operating Temperature:
-40°C
Relay Switching Classification:
Non-Latching Relay
