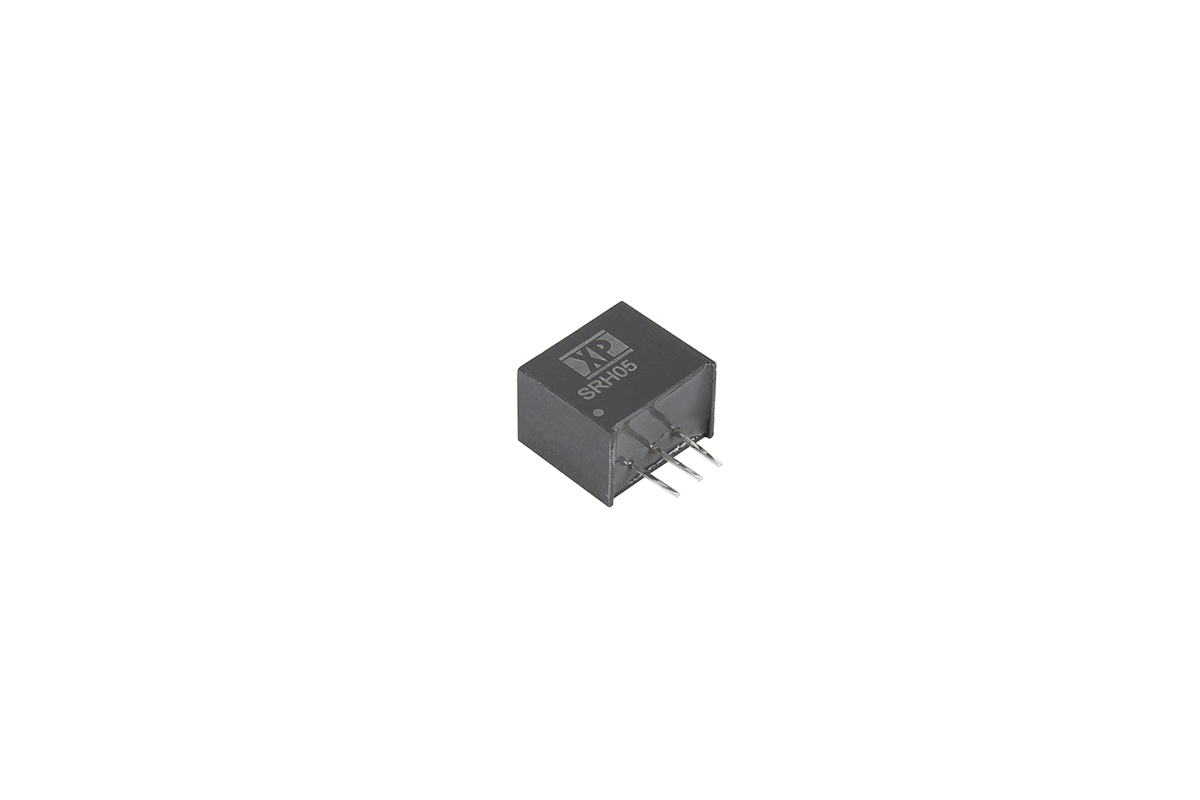

XP Power SRH05S15

SRH05S15 XP Power
SRH05S15
SRH05S15
XP Power

Product Information

Maximum Temperature:
+85°C
Minimum Temperature:
-40°C
Width:
10.16mm
MTBF:
4.5Mh
Protection Features:
Short Circuit Protection
Maximum Input Current:
3 mA, 95 mA, 300 mA
Load Regulation:
0.6%
Standards Met:
EN 55032, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, MIL-HDBK-217F
Efficiency:
89 %, 95%
Input Voltage:
21 → 72V dc
Switching Frequency Range:
120 → 800kHz
Number of Outputs:
1
Line Regulation:
1%
Mounting Type:
Through Hole
Package:
SIP
Ripple And Noise:
75mV Pk-Pk
Length:
11.68mm
Power Signal Conversion Type:
DC-DC
Weight:
2.1g
Output Current:
400mA
Series:
SRH05
Depth:
7.5mm
Output Voltage:
15V dc
HTSUS:
8504.40.9580
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-40°C ~ 85°C (With Derating)
Current - Output (Max):
400mA
Package / Case:
3-SIP Module
Voltage - Input (Min):
21V
Type:
Linear Regulator Replacement
Applications:
ITE (Commercial)
Voltage - Output 4:
-
Voltage - Output 1:
15V
Voltage - Output 2:
-
Voltage - Output 3:
-
Efficiency:
95%
Voltage - Input (Max):
72V
Control Features:
-
Package:
Tube
Size / Dimension:
0.46" L x 0.30" W x 0.40" H (11.7mm x 7.5mm x 10.2mm)
standardLeadTime:
79 Weeks
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Features:
SCP
Mounting Type:
Through Hole
Series:
SRH05
Supplier Device Package:
3-SIP Module
Number of Outputs:
1
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is manufactured by XP Power. The manufacturer part number is SRH05S15. Furthermore, the product is 10.16mm wide. It provides robust protection features, such as short circuit protection. Load Regulation - 0.6%. It is a highly efficient product with an 89 %, 95% of high efficiency. Additionally, the product is supplied with 1 outputs. Has a line regulation of 1%. The product is available in through hole configuration. It is shipped in sip. Its accurate length is 11.68mm. The typical product's weight is 2.1g. The product srh05, is a highly preferred choice for users. The product comes in 7.5mm depth. It is assigned with possible HTSUS value of 8504.40.9580. The product is rohs3 compliant. The product has -40°c ~ 85°c (with derating) operating temperature range. The maximum product's output current is 400ma. Moreover, the product comes in [Package/ Case]. It offers 21v of minimum input voltage. It comes in linear regulator replacement configuration. The product is widely employed in ite (commercial). It has a 15v output voltage. It is a highly efficient product with an 95% of high efficiency. Its maximum input voltage is 72v. It is shipped in tube. The product's diameters include 0.46" l x 0.30" w x 0.40" h (11.7mm x 7.5mm x 10.2mm). It has a long 79 weeks standard lead time. Its typical moisture sensitivity level is 1 (unlimited). The splendid features of the product include scp. 3-sip module is the supplier device package value. The product is designated with the ear99 code number

pdf icon
Datasheet(Technical Reference)
pdf icon
SRH05 Series Datasheet(Datasheets)
pdf icon
Declaration of Conformity SRH05 Series(Environmental Information)
pdf icon
RoHS Statement(Environmental Information)
