Repetitive Peak Reverse Voltage:
600V
Dimensions:
10.28 x 9.35 x 4.6mm
Mounting Type:
Surface Mount
Surge Current Rating:
493A
Rated Average On-State Current:
30A

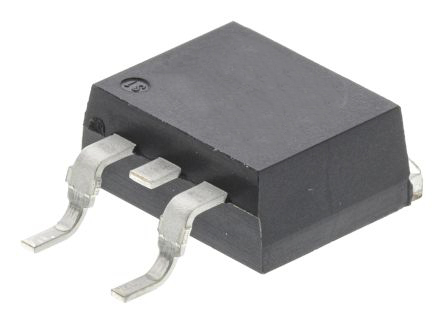

Package Type:
D2PAK
Minimum Operating Temperature:
-40 °C
Maximum Holding Current:
60mA
Maximum Gate Trigger Current:
15mA
Thyristor Type:
SCR
Maximum Operating Temperature:
+150 °C
Pin Count:
3
Maximum Gate Trigger Voltage:
1.3V
HTSUS:
8541.30.0080
RoHS Status:
ROHS3 Compliant
Voltage - Off State:
600 V
Voltage - Gate Trigger (Vgt) (Max):
1.3 V
Operating Temperature:
-40°C ~ 150°C (TJ)
Package / Case:
TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Current - Hold (Ih) (Max):
60 mA
REACH Status:
REACH Unaffected
Current - On State (It (RMS)) (Max):
50 A
Package:
Tube
Current - Off State (Max):
10 µA
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - Gate Trigger (Igt) (Max):
15 mA
Current - Non Rep. Surge 50, 60Hz (Itsm):
493A, 450A
Voltage - On State (Vtm) (Max):
1.65 V
Mounting Type:
Surface Mount
Current - On State (It (AV)) (Max):
30 A
Series:
-
Supplier Device Package:
D²PAK (TO-263)
SCR Type:
Standard Recovery
Base Product Number:
TN5015
ECCN:
EAR99
