Repetitive Peak Reverse Voltage:
600V
Dimensions:
10.28 x 9.35 x 4.6mm
Mounting Type:
Surface Mount
Surge Current Rating:
180A
Rated Average On-State Current:
12.7A

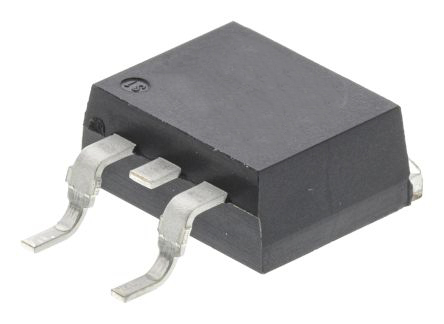

Package Type:
D2PAK
Minimum Operating Temperature:
-40 °C
Maximum Holding Current:
40mA
Maximum Gate Trigger Current:
10mA
Thyristor Type:
SCR
Maximum Operating Temperature:
+150 °C
Pin Count:
3
Maximum Gate Trigger Voltage:
1.3V
HTSUS:
8541.30.0080
RoHS Status:
ROHS3 Compliant
Voltage - Off State:
700 V
Voltage - Gate Trigger (Vgt) (Max):
1.3 V
Operating Temperature:
-40°C ~ 150°C (TJ)
Package / Case:
TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Current - Hold (Ih) (Max):
40 mA
REACH Status:
REACH Unaffected
Current - On State (It (RMS)) (Max):
20 A
Package:
Tube
Current - Off State (Max):
5 µA
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - Gate Trigger (Igt) (Max):
10 mA
Current - Non Rep. Surge 50, 60Hz (Itsm):
197A, 180A
Voltage - On State (Vtm) (Max):
1.6 V
Mounting Type:
Surface Mount
Current - On State (It (AV)) (Max):
12.7 A
Series:
-
Supplier Device Package:
D²PAK
SCR Type:
Sensitive Gate
Base Product Number:
TN2010
ECCN:
EAR99
