Repetitive Peak Reverse Voltage:
600V
Peak On-State Voltage:
0.9V
Surge Current Rating:
12A

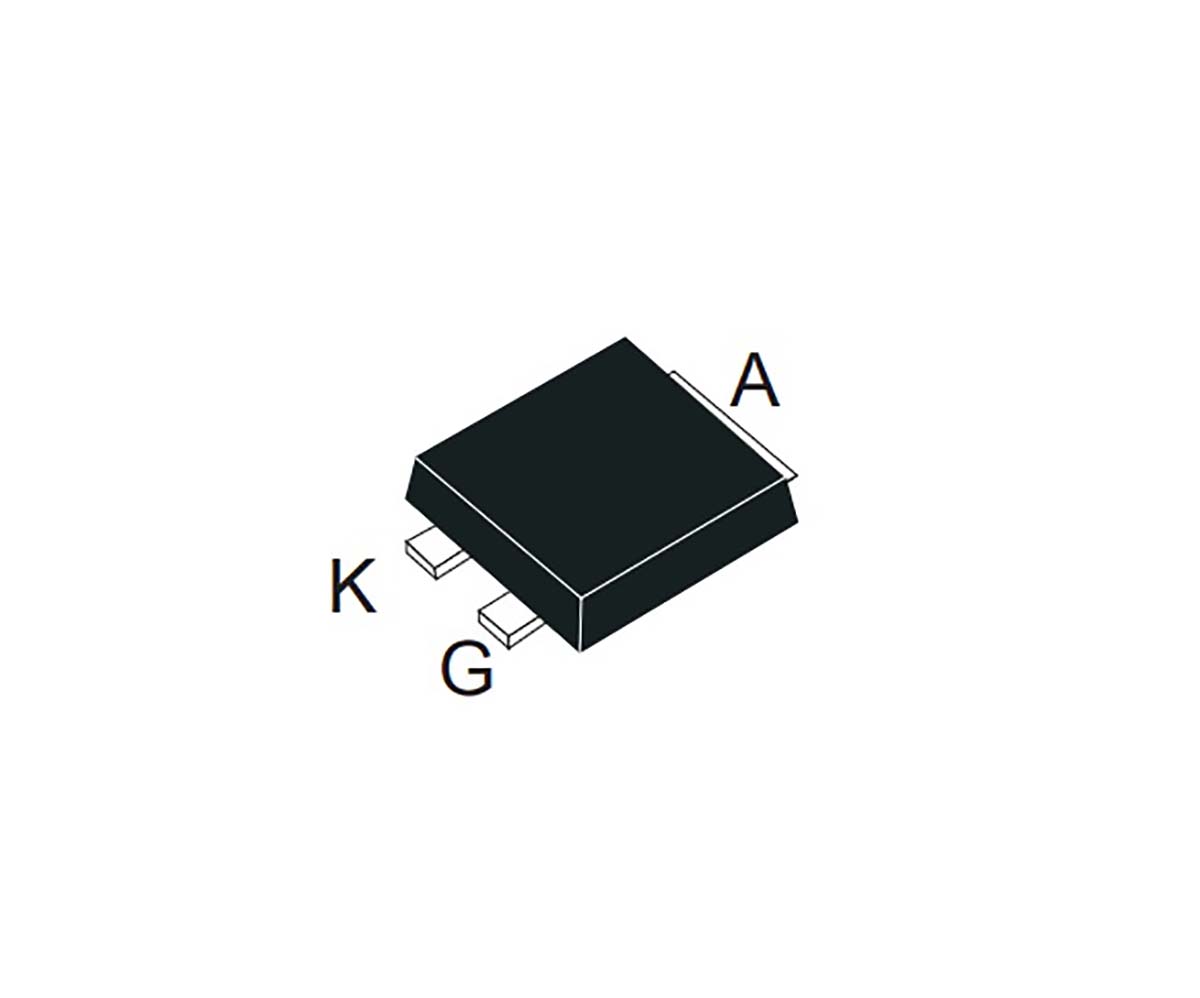

Package Type:
SMB-FLAT-3
Rated Average On-State Current:
1A
Maximum Gate Trigger Current:
0.15mA
Thyristor Type:
SCR
Pin Count:
3
HTSUS:
8541.30.0080
RoHS Status:
ROHS3 Compliant
Voltage - Off State:
600 V
Voltage - Gate Trigger (Vgt) (Max):
800 mV
Operating Temperature:
-40°C ~ 125°C (TJ)
Package / Case:
3-SMB, Flat Lead
Current - Hold (Ih) (Max):
5 mA
REACH Status:
REACH Unaffected
Current - On State (It (RMS)) (Max):
1 A
Package:
Tape & Reel (TR)
Current - Off State (Max):
1 µA
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - Gate Trigger (Igt) (Max):
150 µA
Current - Non Rep. Surge 50, 60Hz (Itsm):
-
Voltage - On State (Vtm) (Max):
1.4 V
Mounting Type:
Surface Mount
Current - On State (It (AV)) (Max):
640 mA
Series:
-
Supplier Device Package:
SMBflat-3L
SCR Type:
Sensitive Gate
Base Product Number:
X0115
ECCN:
EAR99
