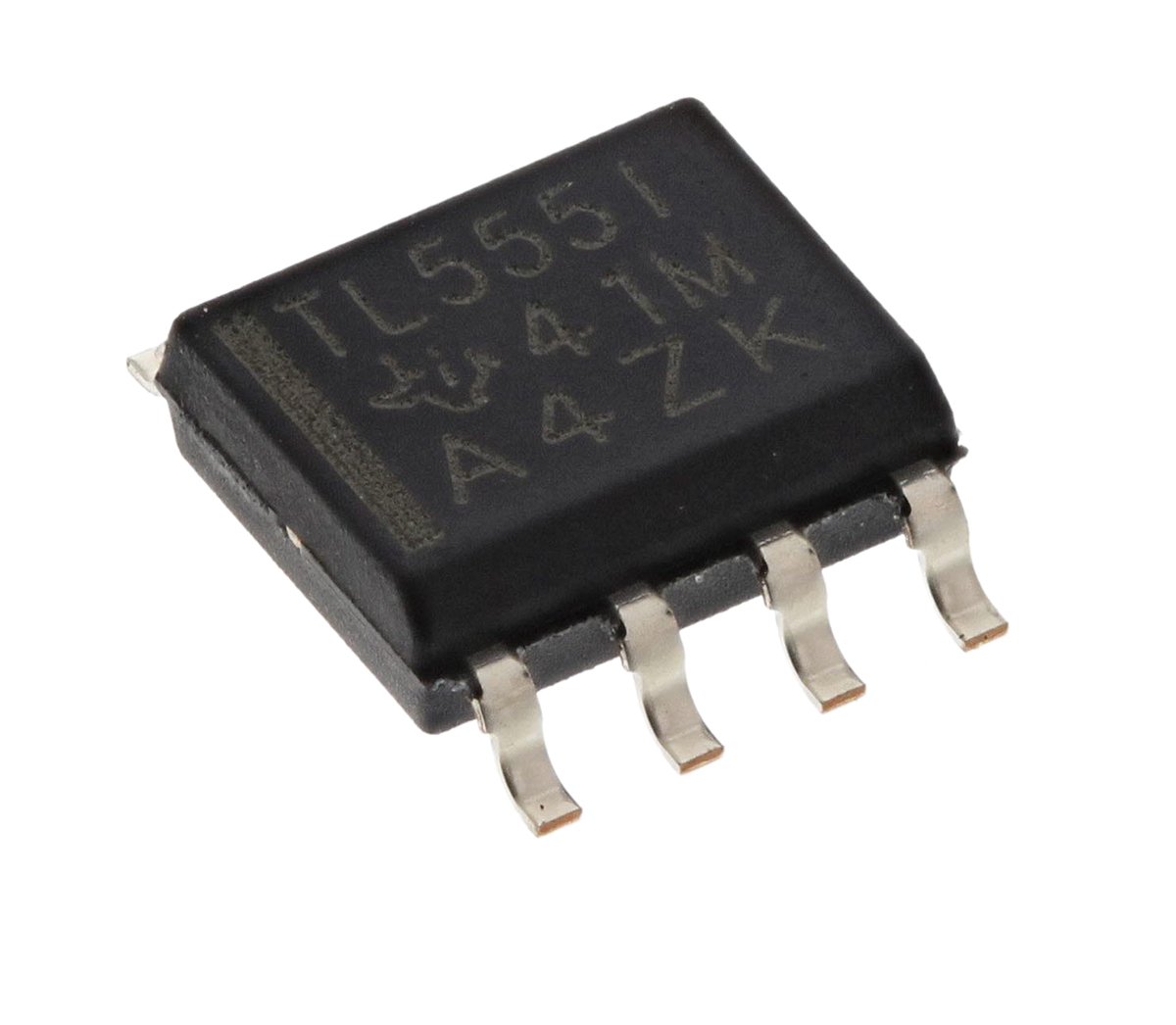

Texas Instruments TLC555IDR

TLC555IDR Texas Instruments
TLC555IDR
TLC555IDR
Texas Instruments

Product Information

Maximum Low Level Output Current:
100mA
Timer Type:
Standard
Dimensions:
4.9 x 3.91 x 1.58mm
Mounting Type:
Surface Mount
Minimum Operating Supply Voltage:
3 V
Height:
1.58mm
Number of Internal Timers:
1
Width:
3.91mm
Length:
4.9mm
Maximum Input Frequency:
2MHz
Package Type:
SOIC
Minimum Operating Temperature:
-40 °C
Maximum Operating Supply Voltage:
15 V
Maximum Operating Temperature:
+85 °C
Pin Count:
8
Maximum High Level Output Current:
-10mA
HTSUS:
8542.39.0001
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-40°C ~ 85°C
Package / Case:
8-SOIC (0.154", 3.90mm Width)
Type:
555 Type, Timer/Oscillator (Single)
REACH Status:
REACH Unaffected
Current - Supply:
360 µA
Count:
-
Package:
Tape & Reel (TR)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
standardLeadTime:
26 Weeks
Mounting Type:
Surface Mount
Series:
LinCMOS™
Supplier Device Package:
8-SOIC
Frequency:
2.1MHz
Voltage - Supply:
3V ~ 15V
Base Product Number:
TLC555
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is manufactured by Texas Instruments. The manufacturer part number is TLC555IDR. The given dimensions of the product include 4.9 x 3.91 x 1.58mm. The product is available in surface mount configuration. In addition, the height is 1.58mm. Furthermore, the product is 3.91mm wide. Its accurate length is 4.9mm. Whereas, the minimum operating temperature of the product is -40 °c. It has a maximum operating temperature of +85 °c. It is assigned with possible HTSUS value of 8542.39.0001. The product is rohs3 compliant. The product has -40°c ~ 85°c operating temperature range. Moreover, the product comes in [Package/ Case]. It comes in 555 type, timer/oscillator (single) configuration. In addition, it is reach unaffected. The current - supply of a bespoke product is 360 µa. It is shipped in tape & reel (tr). Its typical moisture sensitivity level is 1 (unlimited). It has a long 26 weeks standard lead time. The product lincmos™, is a highly preferred choice for users. 8-soic is the supplier device package value. Supplied with 2.1mhz of frequency. It has optimum voltage supply of 3v ~ 15v. Moreover, it corresponds to tlc555, a base product number of the product. The product is designated with the ear99 code number

pdf icon
Design 25/Feb/2022(PCN Design/Specification)
pdf icon
Mult Devices Font 21/Apr/2018(PCN Design/Specification)
