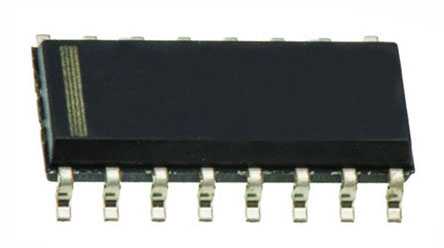

Texas Instruments CD4504BM96, Voltage Level Shifter Voltage Level Shifter CMOS, TTL to CMOS, 16-Pin SOIC

Enrgtech Part No: ET12026275
|
Manufacturer Part No:
CD4504BM96
|
Manufacturer: Texas Instruments

CD4504BM96 Texas Instruments , Voltage Level Shifter Voltage Level Shifter CMOS, TTL to CMOS, 16-Pin SOIC

(0)

Product Information

Pin Count:

Dimensions:

9.9 x 3.91 x 1.58mm

Translation:

CMOS, TTL to CMOS

Logic Family:

4000

Package Type:

SOIC

Mounting Type:

Surface Mount

Logic Function:

Voltage Level Shifter

Maximum Operating Temperature:

+125 °C

Minimum Operating Temperature:

-55 °C

Maximum Low Level Output Current:

4.2mA

Maximum Operating Supply Voltage:

18 V

Minimum Operating Supply Voltage:

5 V

205 - In Stock

In Stock

Each

Quantity

Unit Price (ex VAT)

Price

£ 0.40

£ 2.00

£ 0.38

£ 9.50

£ 0.34

£ 17.00

Mfr Part No:

CD4504BM96

Seller:

Texas Instruments

Origin:

Warranty:

Manufacturer

Data Code:

ET12026275

Order Today!

From: United Kingdom

Est Ship Date: 15 Jul, 2026

Est Fastest Delivery: 16 Jul, 2026

Quantity Quantity

This is Voltage Level Shifter Voltage Level Shifter CMOS TTL to CMOS 16-Pin SOIC manufactured by Texas Instruments. The manufacturer part number is CD4504BM96. The given dimensions of the product include 9.9 x 3.91 x 1.58mm. The product is available in surface mount configuration. It has a maximum operating temperature of +125 °c. Whereas, the minimum operating temperature of the product is -55 °c.
