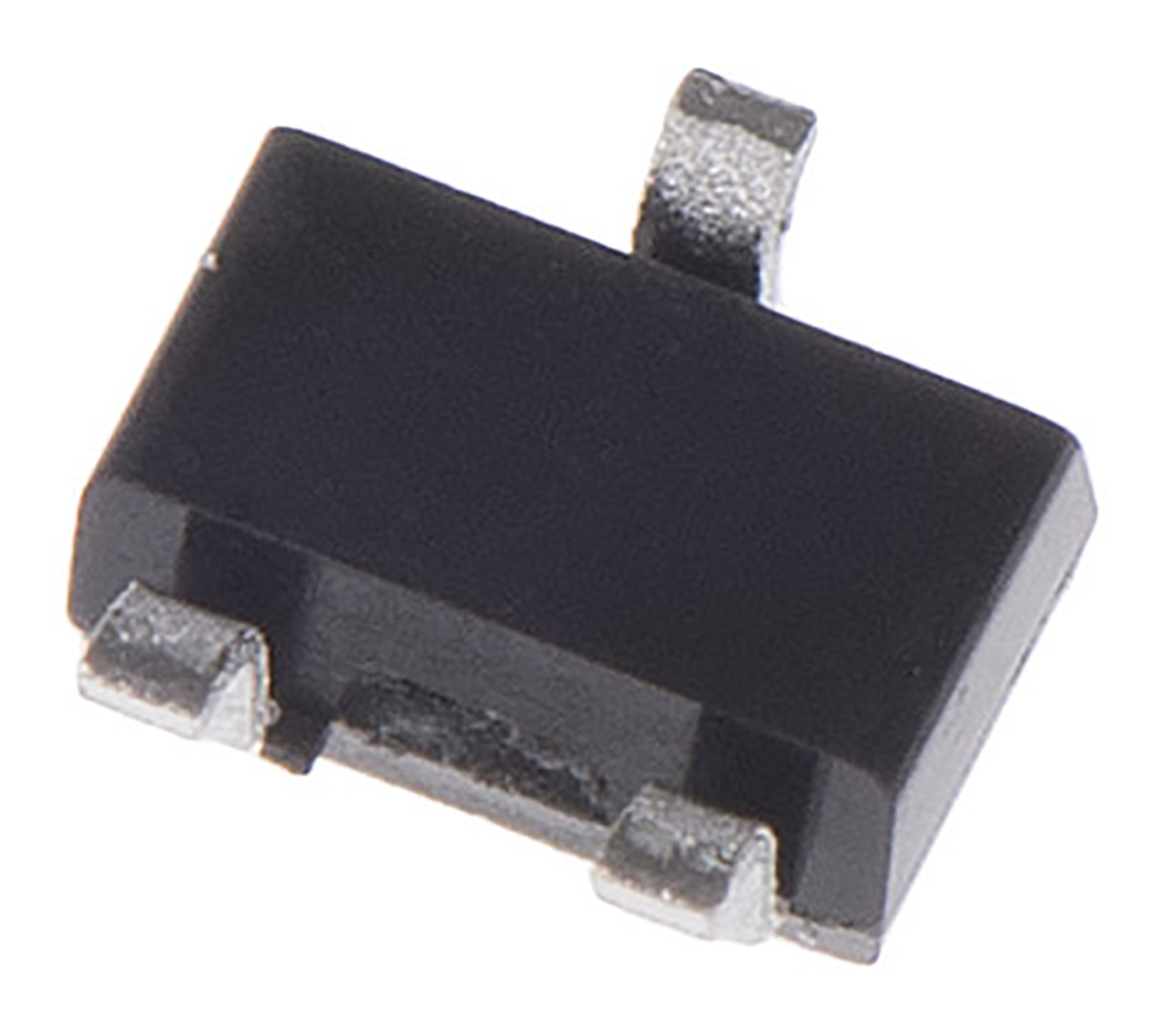

Nexperia NUP1301U,115, Dual Uni-Directional ESD Protection Diode, 220W, 3-Pin SOT-323

NUP1301U-115 Nexperia NUP1301U,115, Dual Uni-Directional ESD Protection Diode, 220W, 3-Pin SOT-323

(0)

Product Information

Maximum Peak Pulse Current:

11A

Maximum Reverse Stand-off Voltage:

80V

Dimensions:

2.2 x 1.35 x 1.1mm

Mounting Type:

Surface Mount

Direction Type:

Uni-Directional

Maximum Operating Temperature:

+150 °C

Minimum Breakdown Voltage:

100V

ESD Protection:

Yes

Peak Pulse Power Dissipation:

220W

Height:

1.1mm

Width:

1.35mm

Length:

2.2mm

Checking for live stock

This is Dual Uni-Directional ESD Protection Diode 220W 3-Pin SOT-323 manufactured by Nexperia. The manufacturer part number is NUP1301U,115. The given dimensions of the product include 2.2 x 1.35 x 1.1mm. The product is available in surface mount configuration. It has a maximum operating temperature of +150 °c. In addition, the height is 1.1mm. Furthermore, the product is 1.35mm wide. Its accurate length is 2.2mm. Whereas, the minimum operating temperature of the product is -55 °c. The diode features a series configuration.

NXP, NUP1301U ESD Protection Array Data Sheet(Technical Reference)

ESD Control Selection Guide V1(Technical Reference)

Your Rating

Reviews

Be the first to review.

FAQs

Yes. You can also search NUP1301U,115 on website for other similar products.

We accept all major payment methods for all products including ET16800085. Please check your shopping cart at the time of order.

You can order Nexperia brand products with NUP1301U,115 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.

Yes. Our products in TVS Diodes category are shipped in lowest possible time.

You will get a confirmation email regarding your order of Nexperia NUP1301U,115, Dual Uni-Directional ESD Protection Diode, 220W, 3-Pin SOT-323. You can also check on our website or by contacting our customer support team for further order details on Nexperia NUP1301U,115, Dual Uni-Directional ESD Protection Diode, 220W, 3-Pin SOT-323.

We use our internationally recognized delivery partners UPS/DHL. Collection of ET16800085 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search"Nexperia" products on our website by using Enrgtech's Unique Manufacturing Part Number NUP1301U,115.

Yes. You can also search NUP1301U,115 on website for other similar products.

Yes. We ship NUP1301U,115 Internationally to many countries around the world.
