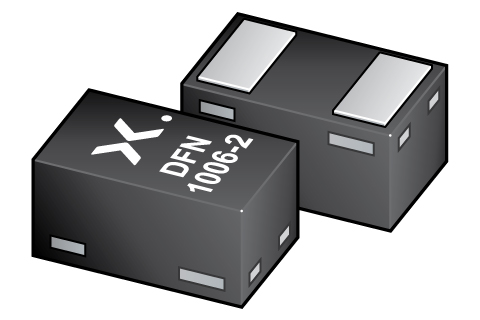

Nexperia PESD5V0X1BCAL,315, Dual Bi-Directional ESD Protection Diode, 2-Pin DFN1006, SOD-882

PESD5V0X1BCAL-315 Nexperia PESD5V0X1BCAL,315, Dual Bi-Directional ESD Protection Diode, 2-Pin DFN1006, SOD-882
Nexperia

Product Information

Dimensions:
1.02 x 0.62 x 0.47mm
Direction Type:
Bi-Directional
Capacitance:
0.95pF
Maximum Clamping Voltage:
17V
Diode Configuration:
Dual
Automotive Standard:
AEC-Q101
Maximum Peak Pulse Current:
1.8A
Minimum Breakdown Voltage:
8.1V
ESD Voltage:
15kV
Maximum Reverse Leakage Current:
10nA
Package Type:
DFN1006, SOD-882
Number of Elements per Chip:
2
Maximum Operating Temperature:
+150 °C
ESD Protection:
Yes
Length:
1.02mm
Pin Count:
2
Maximum Reverse Stand-off Voltage:
5.5V
Mounting Type:
Surface Mount
Width:
0.62mm
Height:
0.47mm
Minimum Operating Temperature:
-55 °C
RoHs Compliant
Checking for live stock

This is Dual Bi-Directional ESD Protection Diode 2-Pin DFN1006 SOD-882 manufactured by Nexperia. The manufacturer part number is PESD5V0X1BCAL,315. The given dimensions of the product include 1.02 x 0.62 x 0.47mm. It provides a 0.95pf of capacitance value. The diode features a dual configuration. It has a maximum operating temperature of +150 °c. Its accurate length is 1.02mm. The product is available in surface mount configuration. Furthermore, the product is 0.62mm wide. In addition, the height is 0.47mm. Whereas, the minimum operating temperature of the product is -55 °c.
