American Wire Gauge:
28 AWG
Standards Met:
CE, CSA, UL
Cable Shape:
Twisted Pair
Series:
EcoCable Mini
Shield Type:
Foil
Fire Behaviour:
Low Smoke Zero Halogen (LSZH)
Core Strands:
19/40 AWG
Sheath Colour:
Grey
Length:
30m
Screened/Unscreened:
Screened
Number of Pairs:
2
Outer Sheath Material:
MPPE
Number of Cores:
4
Voltage Rating:
300 V
Characteristic Impedance:
74 Ω
Outer Diameter:
3.45mm
Cross Sectional Area:
0.09 mm²
Ratings:
ISO 10993, UL Style 21460
HTSUS:
8544.49.3080
RoHS Status:
ROHS3 Compliant
Jacket (Insulation) Material:
Polyphenylene Ether, Modified (mPPE)
Conductor Strand:
19/40
Operating Temperature:
-40°C ~ 80°C
Usage:
-
Number of Conductors:
4 (2 Pair Twisted)
REACH Status:
REACH Unaffected
Package:
Spool
Wire Gauge:
28 AWG
Shield Type:
Foil
Jacket (Insulation) Thickness:
0.0150" (0.381mm)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Length:
100.0' (30.5m)
Conductor Insulation:
Polyphenylene Ether, Modified (mPPE)
standardLeadTime:
35 Weeks
Shield Coverage:
100%
Features:
Biological Compatibility, Drain Wire, Rip Cord
Jacket (Insulation) Diameter:
0.136" (3.45mm)
Conductor Material:
Copper, Tinned
Series:
EcoCable® Mini
Cable Type:
Multi-Pair
Voltage:
300 V
Shield Material:
Aluminum
ECCN:
EAR99
Base Product Number:
78152
Jacket Color:
Slate

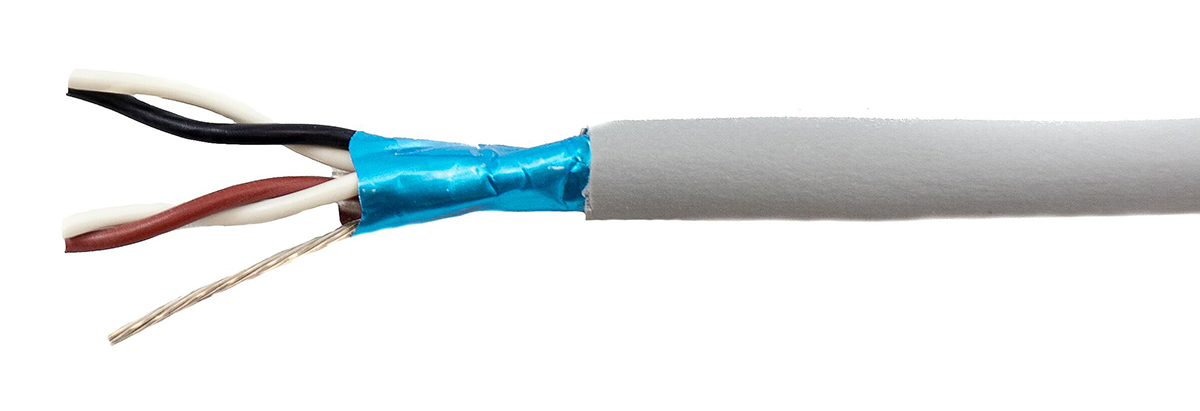

This is manufactured by Alpha Wire. The manufacturer part number is 78152 SL005. The product ecocable mini, is a highly preferred choice for users. The item is shielded with a foil. Its accurate length is 30m. Moreover, the product has a nominal 300 v voltage rating. It is rated with iso 10993, ul style 21460. It is assigned with possible HTSUS value of 8544.49.3080. The product is rohs3 compliant. Its jacket is made from highly insulated polyphenylene ether, modified (mppe) materials. It also features a 19/40 conductor strand. The product has -40°c ~ 80°c operating temperature range. It features 4 (2 pair twisted) conductors. In addition, it is reach unaffected. It is shipped in spool. Moreover, the product has a wire gauge of 28 awg. Furthermore, the insulated jacket is a 0.0150" (0.381mm) thick. Its typical moisture sensitivity level is 1 (unlimited). Its accurate length is 100.0' (30.5m). The conductor offers excellent insulation due to polyphenylene ether, modified (mppe) materials. It has a long 35 weeks standard lead time. It covers shielding capability up to 100%. The splendid features of the product include biological compatibility, drain wire, rip cord. The diameter of the jacket is 0.136" (3.45mm). The conductor is made from copper, tinned material. The product ecocable® mini, is a highly preferred choice for users. It is a typical multi-pair cable. It carries a 300 v of voltage. The product is shielded with a robust aluminum shield materials. The product is designated with the ear99 code number Moreover, it corresponds to 78152, a base product number of the product. It comes in nice slate colour.
