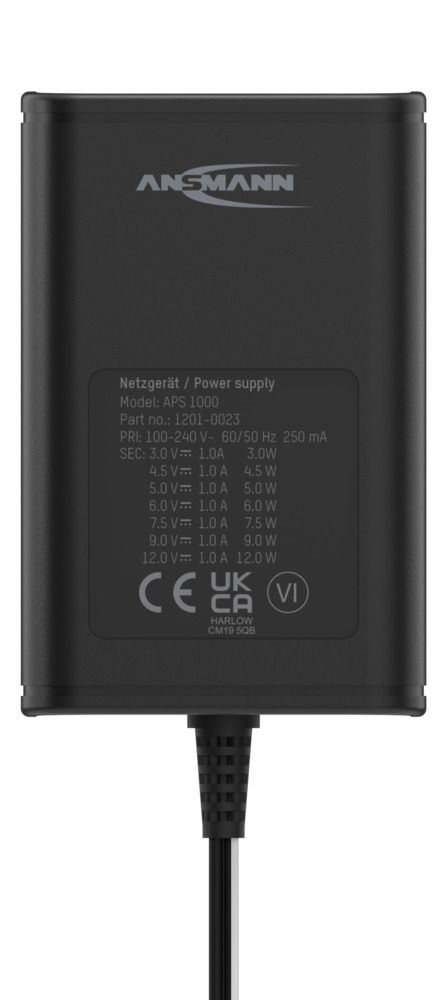

Ansmann Plug In Power Supply 3 V dc, 4.5 V dc, 5 V dc, 6 V dc, 7.5 V dc, 9 V dc, 12 V dc, 1A Level V 1 Output,

5111243 Ansmann Plug In Power Supply 3 V dc, 4.5 V dc, 5 V dc, 6 V dc, 7.5 V dc, 9 V dc, 12 V dc, 1A Level V 1 Output,
5111243
5111243
ET13979607
ET13979607
5111243 Ansmann Plug In Power Supply 3 V dc, 4.5 V dc, 5 V dc, 6 V dc, 7.5 V dc, 9 V dc, 12 V dc, 1A Level V 1 Output,
Ansmann

Product Information

Number of Outputs:
1
Load Regulation:
±10%
Standards Met:
ErP Compliant
Output Current:
1A
Adapter Type:
Plug-In Adapter
Maximum Temperature:
+25°C
Minimum Temperature:
0°C
Input Connector:
EU Plug
Length:
74mm
Output Connector:
Interchangeable
Plug Type:
Type C
Width:
48mm
Depth:
50.8mm
MTBF:
70000h
Input Voltage:
100 V ac, 110 V ac, 115 V ac, 120 V ac, 127 V ac, 220 V ac, 230 V ac, 240V ac
Output Voltage:
3 V dc, 4.5 V dc, 5 V dc, 6 V dc, 7.5 V dc, 9 V dc, 12V dc
Power Rating:
12W
Energy Efficiency Level:
V
Type:
AC/DC Adapter
Cable Length:
1.8m
RoHs Compliant
Checking for live stock

0.3A to 1.5A Multi-Voltage ErP Plug-top Adapters, 2-Pin Euro Multi-voltage plug-top adapter power supplies with ErP level V compliance. These plug-top adapter power supplies have a selectable output voltage and are supplied with 6 interchangeable output connectors. External switch mode plug-top power supplies Plug directly into a 2-pin Euro socket Output voltages selectable from 3V, 4.5V, 6V, 7.5V, 9V and 12Vdc Low standby power consumption of 1.8m output lead 6 interchangeable output connectors Class II - double insulated ErP level V compliant Connection Data Female Coax Plugs Male Jack Plugs Inner Diameter (mm) Outer Diameter (mm) Length (mm) Diameter (mm) Length (mm) 0.75 2.35 10 2.5 12 1.35 3.5 10 3.5 15 1.7 4 10 2.1 5 12 2.5 5.5 12 Note Conforms to Energy-related Product Directive 2009/125/EC.

pdf icon
APS Series Instruction Manual(Technical Reference)
pdf icon
5111243 Datasheet(Technical Reference)
