Number of Outputs:
3
Load Regulation:
±3 % @ -15 V dc, ±5 % @ 15 V dc, ±5 % @ 5V dc
Output Current:
(-15 V dc) 0.1 → 0.3 A, (15 V dc) 0.1 → 0.8 A, (5 V dc) 0.5 → 2.5A
Standards Met:
CB, CE, CSA 22.2, cULus Recognised, EISA 2007/DOE, EN 55022 Class B, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, FCC PART 15/CISP22 Class B, MIL-HDBK-217F, TUV Rheinland, UL 60950-1
Adapter Type:

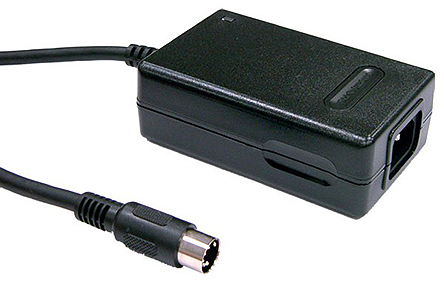

Power Brick Adapter
Efficiency:
81%
Maximum Temperature:
+70°C
Series:
GP25B-T
Input Connector:
IEC 320-C14
Length:
107.5mm
Output Connector:
4-Pin Power DIN
Input Voltage:
80 → 264V ac
Width:
67mm
Depth:
36mm
MTBF:
620kh
Output Voltage:
-15 V dc, 5 V dc, 15V dc
Minimum Temperature:
-20°C
Power Rating:
29W
Energy Efficiency Level:
VI
Cable Length:
1530mm
