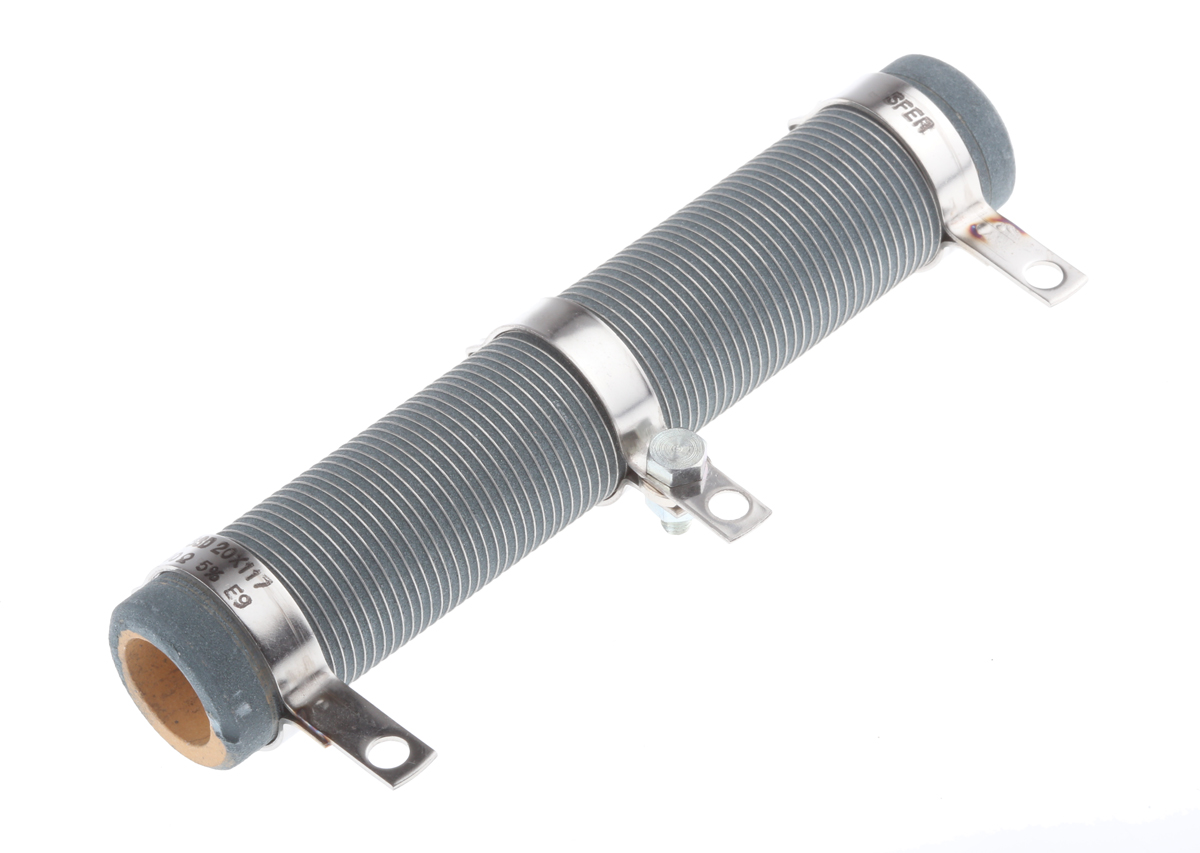

Wirewound resistors, adjustable from 25 W → 280 W Vishay Sfernice model, RSSD series Unique due to their ability to withstand intermittent overloads and to work in assemblies which are subject to severe impact / vibration conditions, these resistors demonstrate great mechanical strength High dissipation and excellent resistance to thermal stress Supplied with slider collar not set Removal of the slider increases the resistance by 5 → 10%. 2 EN fixing brackets are supplied separately in pairs ( RS 788-5154 ). Dimensions (mm) A B max. C min. D E F P Q R Z RSSD 10 x 50 50 11.5 5 40 22 6.35 31 4.2 18 1.5 RSSD 20 x 117 117 22 12.6 98 31 6.35 42 4.2 24 5 RSSD 25 x 168 168 27 16.4 147 33.5 9 51 5.7 28.5 6 RSSD 30 x 250 250 32 21.3 227 36 13 55 5.7 31 5 Max. dissipation at 25 °C: RSSD 10 x 50 mm version: 25 W RSSD 20 x 117 mm version: 100 W RSSD 25 x 168 mm version: 200 W RSSD 30 x 250 mm version: 280 W Tolerance: R 1 Ω ≤ R R ≥10 Ω: ±5% Temperature coefficient: +75 ppm / °C Operating temperature: –55 °C → +450 °C
see also : Dual Cartridge Epoxy Adhesive
see also for this product : Liquid Acrylic Adhesive
For more information please check the datasheets.
