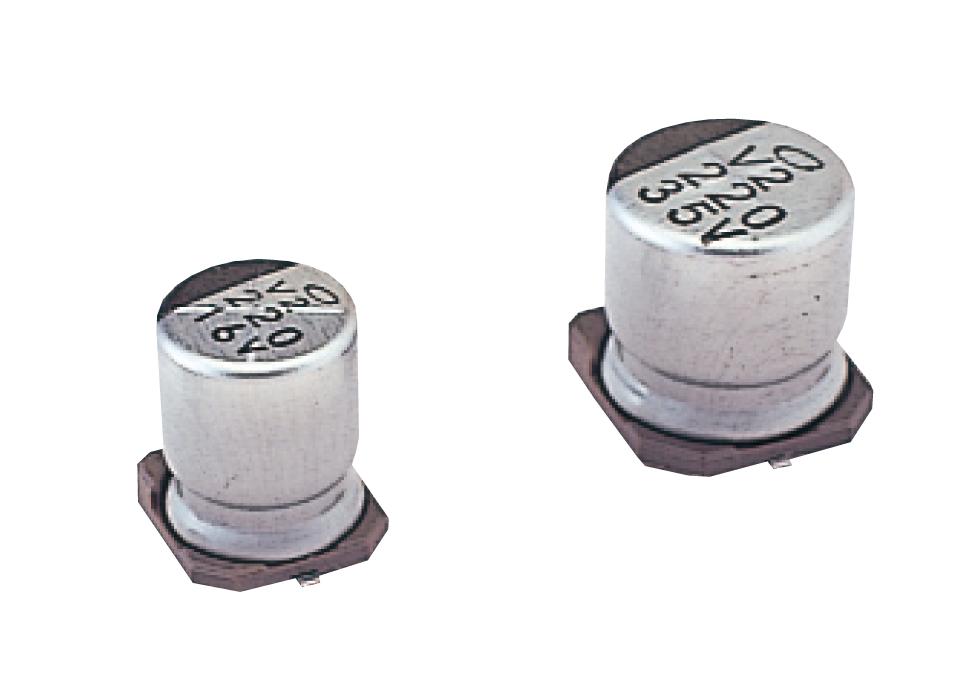

This is manufactured by Nichicon. The manufacturer part number is UUR1V470MCL6GS. Its diameter is 6.3mm. The given dimensions of the product include 6.3(dia.) x 5.8mm. The product is available in surface mount configuration. It has a maximum operating temperature of +85°c. It provides a 47µf of capacitance value. Its accurate length is 5.8mm. It carries a 35v dc of voltage. This product use electrolytic technology. It is assigned with possible HTSUS value of 8532.22.0020. The product is rohs3 compliant. It provides a 47 µf of capacitance value. The product has -40°c ~ 85°c operating temperature range. Moreover, the product comes in [Package/ Case]. It features ±20% of tolerance value. It also exhibits voltage rating of 35 v. It has the maximum seated height of 0.240" (6.10mm) Additionally, it carries a ripple current and high frequency of 156.98 ma @ 10 khz. In addition, it is reach unaffected. Its ripple current at low frequency is 94 ma @ 120 hz. The product is widely employed in general purpose. It has typical surface-mount land sizes, such as 0.260" l x 0.260" w (6.60mm x 6.60mm). It is shipped in tape & reel (tr). The product's diameters include 0.248" dia (6.30mm). Its typical moisture sensitivity level is 1 (unlimited). The product uur, is a highly preferred choice for users. This product offers longer life span for 2000 hrs @ 85°c. The product is designated with the ear99 code number
For more information please check the datasheets.
