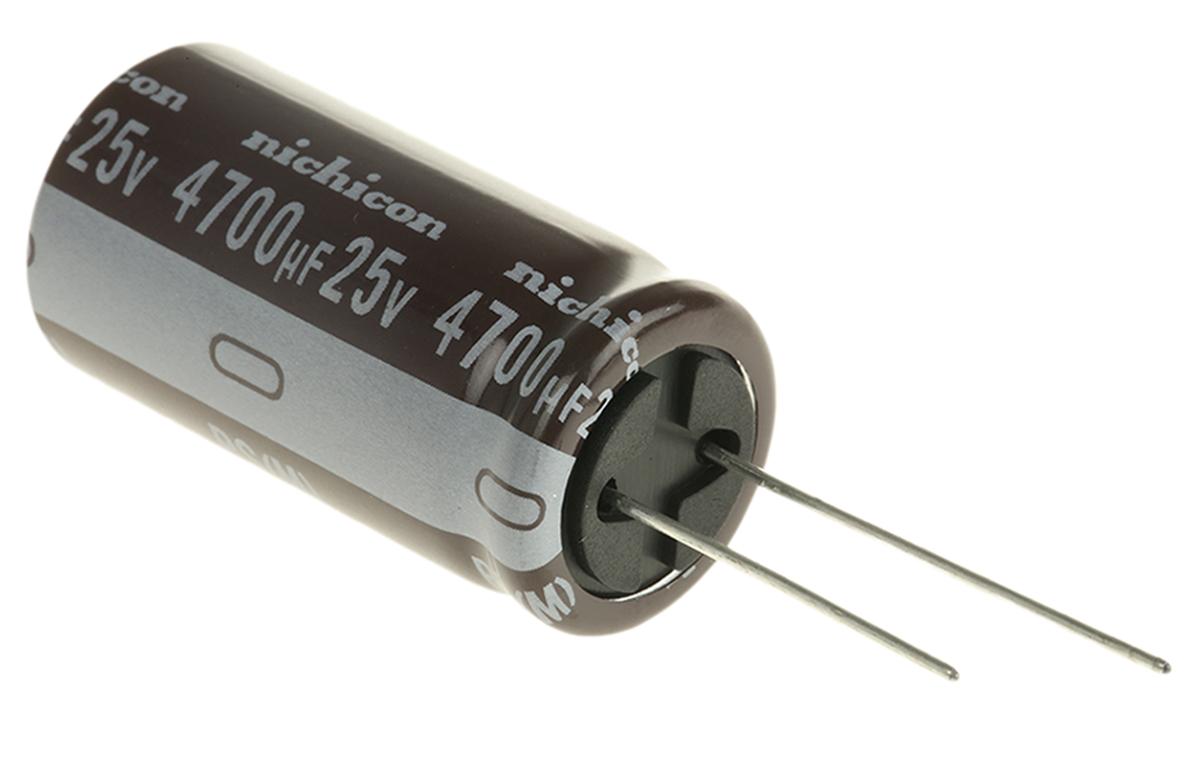

This is manufactured by Nichicon. The manufacturer part number is UPS1E472MHD. Its diameter is 18mm. The given dimensions of the product include 18 (dia.) x 35.5mm. The product is available in radial, through hole configuration. The product ps, is a highly preferred choice for users. In addition, the height is 35.5mm. It provides a 4700µf of capacitance value. It carries a 25v dc of voltage. It has a maximum operating temperature of +105°c. It features ±20% of tolerance value. Whereas, the minimum operating temperature of the product is -55°c. This product use aluminium electrolytic technology. It is assigned with possible HTSUS value of 8532.22.0020. The product is rohs3 compliant. The product features a [Ploarization] polarity. It provides a 4700 µf of capacitance value. The product has -55°c ~ 105°c operating temperature range. Moreover, the product comes in [Package/ Case]. It also exhibits voltage rating of 25 v. It has the maximum seated height of 1.476" (37.50mm) Additionally, it carries a ripple current and high frequency of 2.7 a @ 100 khz. In addition, it is reach unaffected. Its ripple current at low frequency is 2.349 a @ 120 hz. The product is widely employed in general purpose. It has an impedance value of 30 mohms. It is shipped in bulk. The product's diameters include 0.709" dia (18.00mm). Its typical moisture sensitivity level is not applicable. The product is available in through hole configuration. The product ups, is a highly preferred choice for users. This product offers longer life span for 3000 hrs @ 105°c. It is assigned with 0.295" (7.50mm) of lead spacing. The product is designated with the ear99 code number
For more information please check the datasheets.
