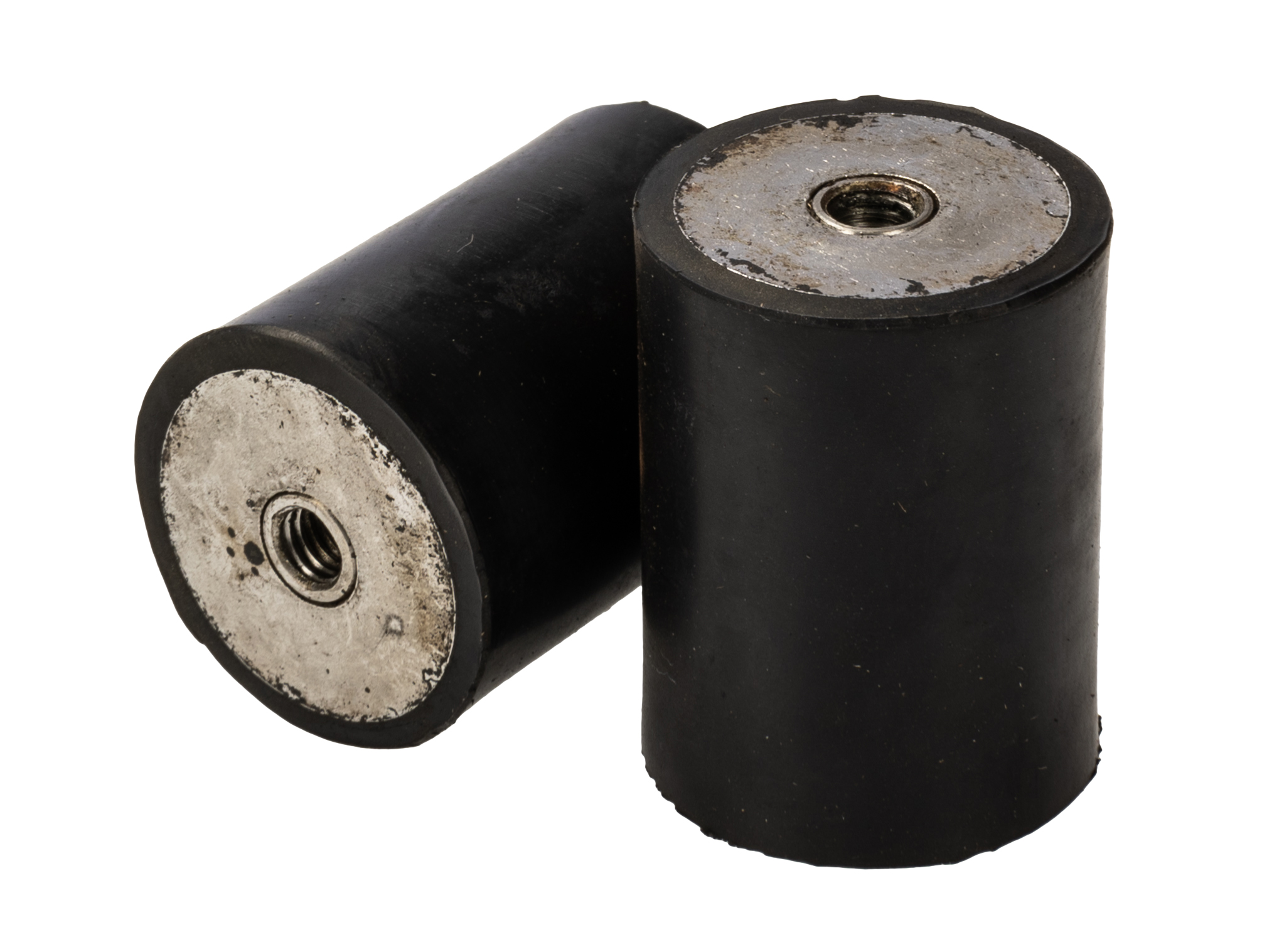

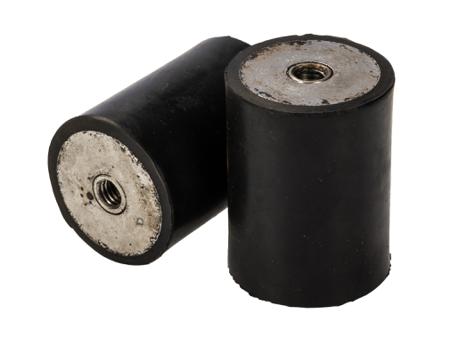

RS Pro Cylindrical M6 Stainless Steel Anti-Vibration Mount 26.8kg Compression Load ,30mm dia.

126-3924 RS Pro Cylindrical M6 Stainless Steel Anti-Vibration Mount 26.8kg Compression Load ,30mm dia.
RS Pro

Product Information

Foot Shape:
Cylindrical
Static Load Capacity:
26.8kg
Shore Hardness:
45 Shore A
Mounting Type:
Screw-in
Diameter:
30mm
Series:
AV Type C
Overall Height:
40mm
Anti Vibration Mount Type:
Female to Female Bobbin
Thread Size:
M6
Compression Deflection:
4mm
Metalwork:
Stainless Steel
Maximum Operating Temperature:
+100°C
Compression Load:
26.8kg
Foot Height:
40mm
RoHs Compliant
Checking for live stock

This is Cylindrical M6 Stainless Steel Anti-Vibration Mount 26.8kg Compression Load 30mm dia. manufactured by RS Pro. The manufacturer part number is 126-3924. The product is available in screw-in configuration. Its diameter is 30mm. The product av type c, is a highly preferred choice for users. It has a typical thread size of m6. It has a maximum operating temperature of +100°c.

pdf icon
RS Pro Datasheet(Technical Reference)
