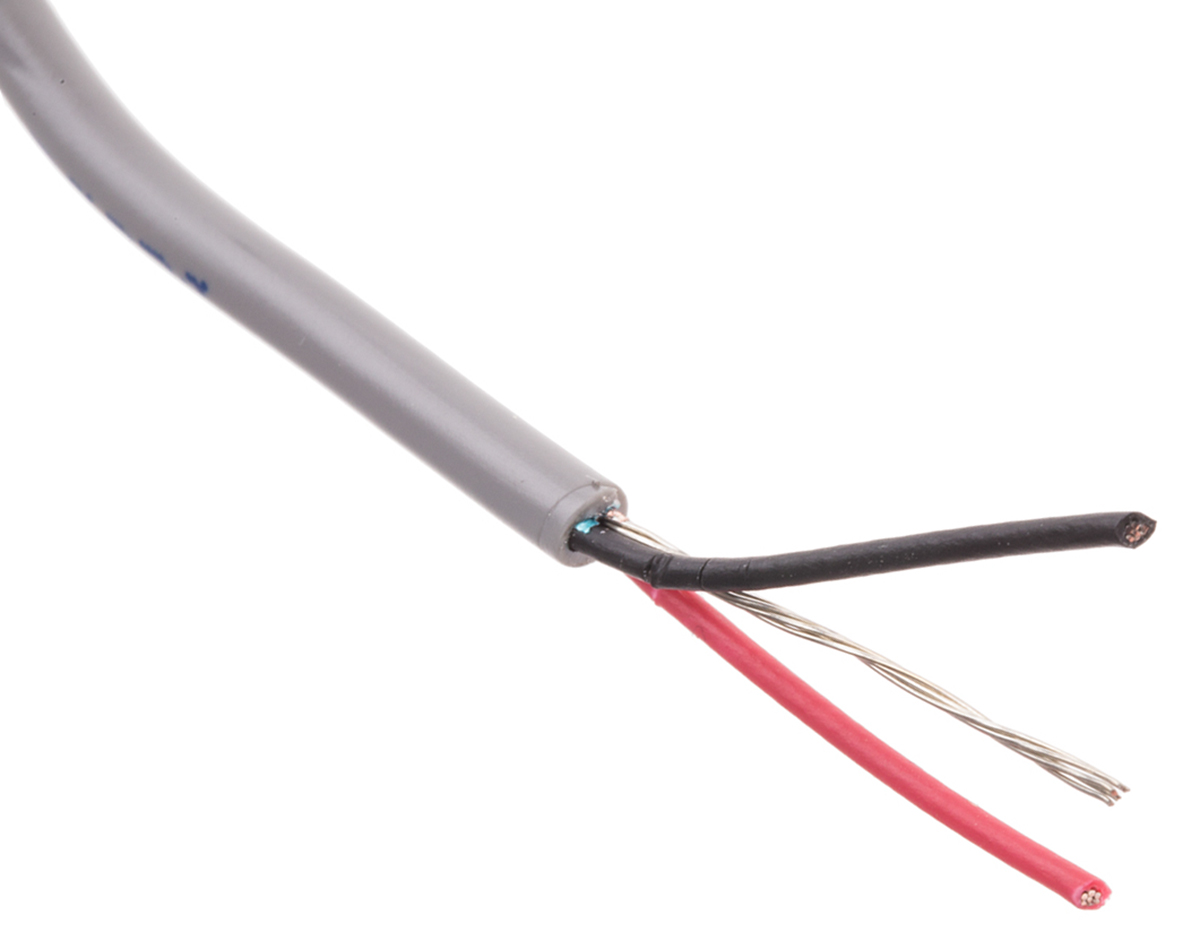

Belden 152m 2 Core Screened Grey Instrument Cable, 300 V, 3.43mm od , 0.33 mm² CSA

9451-008500 Belden 152m 2 Core Screened Grey Instrument Cable, 300 V, 3.43mm od , 0.33 mm² CSA
9451 008500
9451 008500
9451-008500 Belden 152m 2 Core Screened Grey Instrument Cable, 300 V, 3.43mm od , 0.33 mm² CSA
Belden

Product Information

American Wire Gauge:
22 AWG
Current Rating:
2.9 A
Conductor Resistance:
46.259844 Ω/km
Screened/Unscreened:
Screened
Number of Cores:
2
Outer Diameter:
3.43mm
Number of Strands:
7
Standards Met:
Euroclass Eca
Cable Shape:
Multicore
Core Strands:
7/30
Conductor Strand Type:
Stranded
Maximum Operating Temperature:
+75°C
Drain Wire:
Yes
Voltage Rating:
300 V
Audio Cable Type:
Line level Low Voltage signal Cable
Length:
152m
Characteristic Impedance:
45 Ω
Sheath Material:
PVC
Screen Type:
Aluminium/PET Foil
Conductor Material:
Copper
Series:
9451
Size of Strands:
30 AWG
Capacitance Core To Core:
114.8pF/m
Sheath Colour:
Grey
Capacitance Core To Screen:
219.76pF/m
Cross Sectional Area:
0.33 mm²
Minimum Operating Temperature:
-20°C
Insulation Material:
PP
RoHs Compliant
Checking for live stock

This is 152m 2 Core Screened Grey Instrument Cable 300 V 3.43mm od 0.33 mm² CSA manufactured by Belden. The manufacturer part number is 9451 008500. The product has a current rating of 2.9 a. It has a maximum operating temperature of +75°c. Moreover, the product has a nominal 300 v voltage rating. Its accurate length is 152m. The conductor is made from copper material. The product 9451, is a highly preferred choice for users. Whereas, the minimum operating temperature of the product is -20°c. It has a robust pp insulation material.

pdf icon
Datasheet(Technical Reference)
pdf icon
Cable Selection Guide(Technical Reference)
