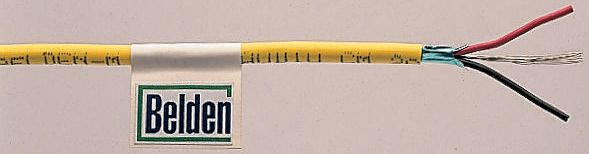

Belden 304m 2 Core Screened Yellow Instrument Cable, 300 V, 3.61mm od , 0.33 mm² CSA

1503A-004U1000 Belden 304m 2 Core Screened Yellow Instrument Cable, 300 V, 3.61mm od , 0.33 mm² CSA
1503A-004U1000 Belden 304m 2 Core Screened Yellow Instrument Cable, 300 V, 3.61mm od , 0.33 mm² CSA
Belden

Product Information

American Wire Gauge:
22 AWG
Current Rating:
2.9 A
Conductor Resistance:
48.228348 Ω/km
Screened/Unscreened:
Screened
Number of Cores:
2
Outer Diameter:
3.61mm
Number of Strands:
7
Sheath Material:
PVC
Cable Shape:
Multicore
Core Strands:
7/30
Conductor Strand Type:
Stranded
Maximum Operating Temperature:
+90°C
Drain Wire:
Yes
Voltage Rating:
300 V
Audio Cable Type:
Line level Low Voltage signal Cable
Length:
304m
Characteristic Impedance:
38 Ω
Screen Type:
Aluminium/PET Foil
Conductor Material:
Copper
Capacitance Core To Core:
173.84pF/m
Sheath Colour:
Yellow
Capacitance Core To Screen:
318.16pF/m
Cross Sectional Area:
0.33 mm²
Minimum Operating Temperature:
-30°C
Insulation Material:
PVC
RoHs Compliant
Checking for live stock

This is 304m 2 Core Screened Yellow Instrument Cable 300 V 3.61mm od 0.33 mm² CSA manufactured by Belden. The manufacturer part number is 1503A 004U1000. The product has a current rating of 2.9 a. It has a maximum operating temperature of +90°c. Moreover, the product has a nominal 300 v voltage rating. Its accurate length is 304m. The conductor is made from copper material. Whereas, the minimum operating temperature of the product is -30°c. It has a robust pvc insulation material.

pdf icon
Datasheet(Technical Reference)
pdf icon
Cable Selection Guide(Technical Reference)
