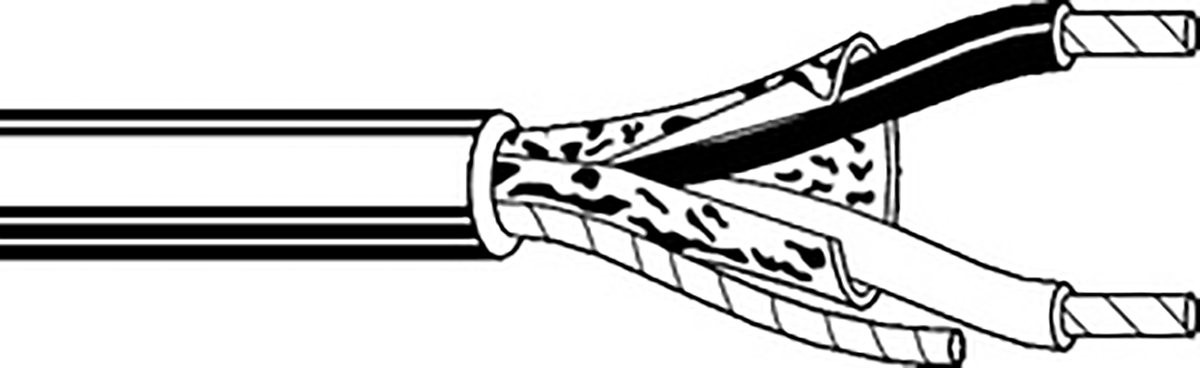

Belden 152m 2 Core Chrome Twisted Pair Instrument Cable, 300 V, 4.45mm od , 0.35 mm² CSA

8761-00U152 Belden 152m 2 Core Chrome Twisted Pair Instrument Cable, 300 V, 4.45mm od , 0.35 mm² CSA
8761.00U152
Belden

Product Information

American Wire Gauge:
22 AWG
Current Rating:
2.9 A per conductor @ 25°C ambient
Conductor Resistance:
16 Ω/0.34 km
Number of Cores:
2
Outer Diameter:
4.45mm
Number of Strands:
7
Sheath Material:
Polyvinyl Chloride PVC
Cable Shape:
Twisted Pair
Core Strands:
7/30
Shielded/Unshielded:
Shielded
Conductor Strand Type:
Stranded
Maximum Operating Temperature:
+60°C
Drain Wire:
Yes
Voltage Rating:
300 V
Audio Cable Type:
Line level Low Voltage signal Cable
Length:
152m
Characteristic Impedance:
64 Ω
Conductor Material:
Tinned Copper
Size of Strands:
30 AWG
Capacitance Core To Core:
79pF/m
Sheath Colour:
Chrome
Capacitance Core To Screen:
154pF/m
Cross Sectional Area:
0.35 mm²
Minimum Operating Temperature:
-20°C
Insulation Material:
PE
RoHs Compliant
Checking for live stock

This is 152m 2 Core Chrome Twisted Pair Instrument Cable 300 V 4.45mm od 0.35 mm² CSA manufactured by Belden. The manufacturer part number is 8761.00U152. The product has a current rating of 2.9 a per conductor @ 25°c ambient. It has a maximum operating temperature of +60°c. Moreover, the product has a nominal 300 v voltage rating. Its accurate length is 152m. The conductor is made from tinned copper material. Whereas, the minimum operating temperature of the product is -20°c. It has a robust pe insulation material.

pdf icon
Cable Selection Guide(Technical Reference)
pdf icon
8761 Data Sheet(Technical Reference)
