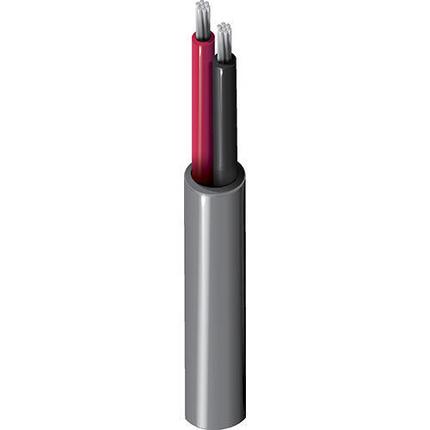

Cable, Unshielded; 20 AWG; 1; 7 x 28e, Unshielded; 20 AWG; 1; 7 x 28; 304m

8205-0601000 Cable, Unshielded; 20 AWG; 1; 7 x 28e, Unshielded; 20 AWG; 1; 7 x 28; 304m
8205-0601000 Cable, Unshielded; 20 AWG; 1; 7 x 28e, Unshielded; 20 AWG; 1; 7 x 28; 304m
Belden

Product Information

American Wire Gauge:
20 AWG
Current Rating:
3.7 A
Conductor Resistance:
33 Ω/km
Screened/Unscreened:
Unscreened
Number of Cores:
2
Outer Diameter:
4.57mm
Number of Strands:
7
Standards Met:
Euroclass Eca
Cable Shape:
Twisted Pair
Core Strands:
7/28
Shielded/Unshielded:
Unshielded
Conductor Strand Type:
Stranded
Maximum Operating Temperature:
+60°C
Fire Behaviour:
Flame Retardant, Low Smoke Zero Halogen (LSZH)
Voltage Rating:
300 V ac
Audio Cable Type:
Speaker Cable
Length:
305m
Sheath Material:
Polyvinyl Chloride PVC
Conductor Material:
Tinned Copper
Series:
8205
Size of Strands:
0.32 mm
Capacitance Core To Core:
24.5pF/ft
Sheath Colour:
Chrome
Cross Sectional Area:
0.5 mm²
Minimum Operating Temperature:
-20°C
Insulation Material:
PVC
RoHs Compliant
Checking for live stock

This is Cable Unshielded; 20 AWG; 1; 7 x 28e Unshielded; 20 AWG; 1; 7 x 28; 304m manufactured by Belden. The manufacturer part number is 8205 0601000. The product has a current rating of 3.7 a. It has a maximum operating temperature of +60°c. Moreover, the product has a nominal 300 v ac voltage rating. Its accurate length is 305m. The conductor is made from tinned copper material. The product 8205, is a highly preferred choice for users. Whereas, the minimum operating temperature of the product is -20°c. It has a robust pvc insulation material.
