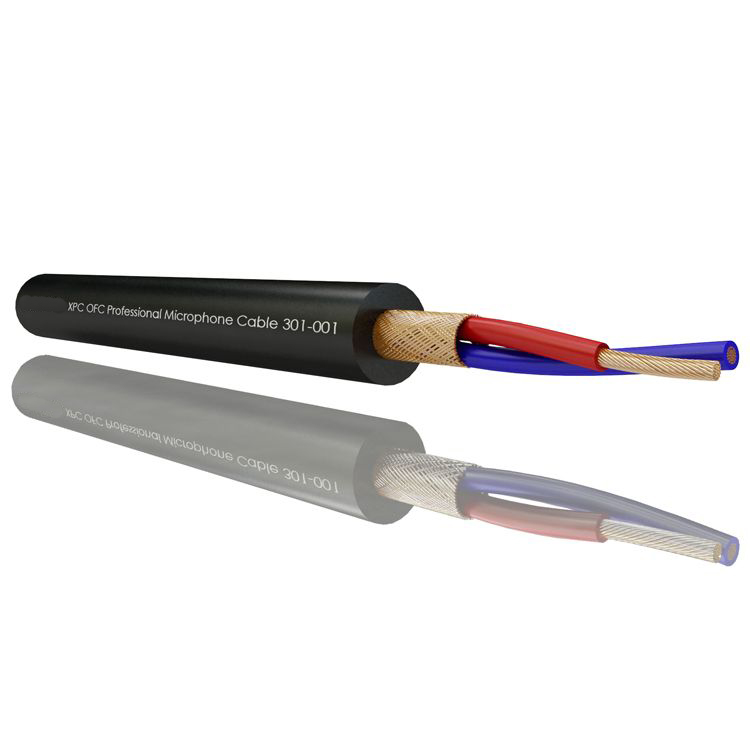

RS PRO Screened 2 Core Microphone, 0.25 mm² CSA, 6.35mm od, 100m, Black

214-9597 RS PRO Screened 2 Core Microphone, 0.25 mm² CSA, 6.35mm od, 100m, Black
214-9597 RS PRO Screened 2 Core Microphone, 0.25 mm² CSA, 6.35mm od, 100m, Black
RS PRO

Product Information

American Wire Gauge:
24 AWG
Conductor Resistance:
85 Ω/km
Screened/Unscreened:
Screened
Number of Cores:
2
Outer Diameter:
6.35mm
Number of Strands:
28
Sheath Material:
PVC
Cable Shape:
Multicore
Core Strands:
28
Conductor Strand Type:
Stranded
Maximum Operating Temperature:
+70°C
Audio Cable Type:
Microphone
Length:
100m
Screen Type:
Lap
Conductor Material:
Oxygen Free Copper
Size of Strands:
0.10 mm
Capacitance Core To Core:
60pF/m
Sheath Colour:
Black
Capacitance Core To Screen:
110pF/m
Cross Sectional Area:
0.25 mm²
Minimum Operating Temperature:
-20°C
Insulation Material:
XLPE
RoHs Compliant
Checking for live stock

This is Screened 2 Core Microphone 0.25 mm² CSA 6.35mm od 100m Black manufactured by RS PRO. The manufacturer part number is 214-9597. It has a maximum operating temperature of +70°c. Its accurate length is 100m. The conductor is made from oxygen free copper material. Whereas, the minimum operating temperature of the product is -20°c. It has a robust xlpe insulation material.

pdf icon
RS PRO Datasheet(Technical Reference)
