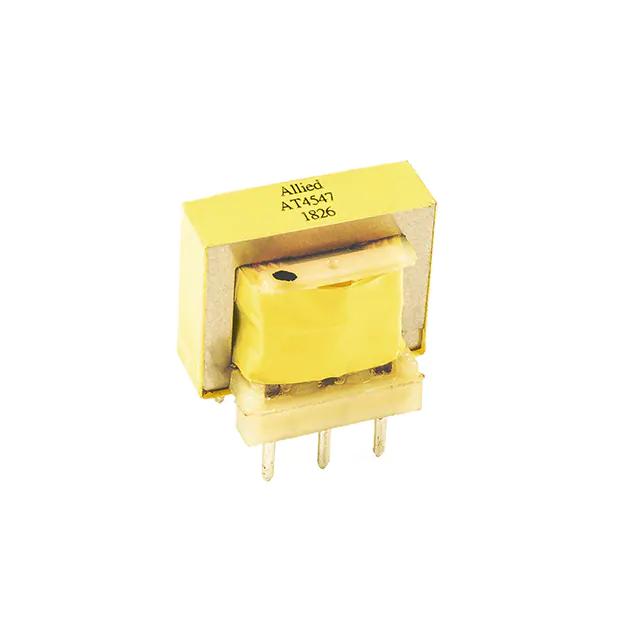

Allied Components International AT4547

AT4547 Allied Components International
Allied Components International

Product Information

Frequency Range:
-
HTSUS:
8504.31.2000
Termination Style:
PC Pin
Power Level:
-
Approval Agency:
-
DC Resistance (DCR) - Primary:
56.5Ohm
Insertion Loss:
0.8dB Typ
Height - Seated (Max):
0.740" (18.80mm)
REACH Status:
REACH info available upon request
Operating Temperature:
0°C ~ 105°C
DC Resistance (DCR) - Secondary:
40.7Ohm, 40.7Ohm
Impedance - Secondary (Ohms):
-
Package:
Tray
Size / Dimension:
0.812" L x 0.715" W (20.62mm x 18.16mm)
Transformer Type:
Data/Voice
Turns Ratio - Primary:Secondary:
1.35:1:1
Voltage - Isolation:
1500VAC
Impedance - Primary (Ohms):
600
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Mounting Type:
Through Hole
Weight:
-
Series:
-
Frequency Response:
±1dB
Return Loss:
30dB Typ
ECCN:
EAR99
Checking for live stock

This is manufactured by Allied Components International. The manufacturer part number is AT4547. It is assigned with possible HTSUS value of 8504.31.2000. Moreover, it has pc pin terminal style. Allows 0.8db typ of insertion loss. It has the maximum seated height of 0.740" (18.80mm) In addition, it is reach info available upon request. The product has 0°c ~ 105°c operating temperature range. It is shipped in tray. The product's diameters include 0.812" l x 0.715" w (20.62mm x 18.16mm). It is a data/voice transformer. The typical primary and secondary turn ratio is 1.35:1:1. 1500vac of isolation voltage. Its typical moisture sensitivity level is 1 (unlimited). The product is available in through hole configuration. It has a return loss of 30db typ. The product is designated with the ear99 code number
