Actual Diameter:
0.146" (3.70mm)
HTSUS:
8536.69.4030
RoHS Status:
ROHS3 Compliant
Thread Size:
Whitworth (UK)
Operating Temperature:
-20°C ~ 70°C
Panel Hole Size:
0.252" (6.40mm)
Industry Recognized Mating Diameter:
3.50mm (0.141", 1/8", Mini Plug) - Headphone
Internal Switch(s):
Three Switches
Shielding:
Unshielded
Voltage - Rated:
12VAC/DC
Cable Opening:
-
Insulation Color:
-
REACH Status:
REACH Unaffected
Includes:
2 pcs - 1 Connector, 1 Nut
Signal Lines:
Stereo (3 Conductor, TRS)
Number of Positions/Contacts:
3 Conductors, 6 Contacts
Package:
Bulk
Gender:
Female

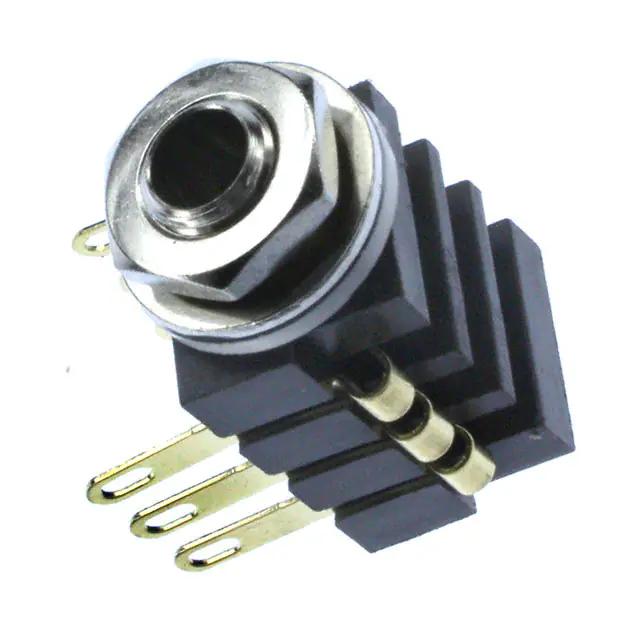

Connector Type:
Phone Jack
Moisture Sensitivity Level (MSL):
Not Applicable
Body Material:
-
Termination:
Solder Eyelet(s)
standardLeadTime:
26 Weeks
Current Rating (Amps):
1 A
Housing Material:
Plastic
Body Color:
Black
Features:
Mounting Hardware, Thread Lock
Mounting Type:
Panel Mount, Through Hole, Right Angle
Mating Length/Depth:
0.732" (18.60mm)
Series:
4802
Contact Material - Plating:
Gold
Contact Material:
Brass
ECCN:
EAR99
