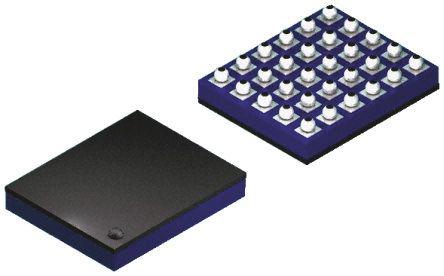

Fairchild Semiconductor FAN54300UCX, Lithium-Ion, Lithium-Polymer, Battery Charger, 1500mA, WLCSP 30-Pin

FAN54300UCX Fairchild Semiconductor , Lithium-Ion, Lithium-Polymer, Battery Charger, 1500mA, WLCSP 30-Pin
Fairchild Semiconductor

Product Information

Dimensions:
2.46 x 2.26 x 0.378mm
Mounting Type:
Surface Mount
Maximum Operating Temperature:
+85 °C
Minimum Output Current:
550mA
Height:
0.378mm
Typical Operating Supply Voltage:
4 → 6 V
Width:
2.26mm
Length:
2.46mm
Package Type:
WLCSP
Maximum Output Voltage:
4.4 V
Minimum Operating Temperature:
-40 °C
Minimum Output Voltage:
3.5 V
Battery Type:
Lithium-Ion, Lithium-Polymer
Maximum Output Current:
1500mA
Pin Count:
30
Programmable Features:
Current, Timer, Voltage
HTSUS:
8542.39.0001
RoHS Status:
ROHS3 Compliant
Supplier Device Package:
30-WLCSP (2.46x2.26)
Operating Temperature:
-30°C ~ 85°C (TA)
Charge Current - Max:
1.5A
Package / Case:
30-UFBGA, WLCSP
Voltage - Supply (Max):
9.5V
REACH Status:
REACH Unaffected
Interface:
I²C
Package:
Bulk
Battery Pack Voltage:
-
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - Charging:
Constant - Programmable
Mounting Type:
Surface Mount
Series:
-
Fault Protection:
Over Temperature, Over Voltage, Short Circuit
Number of Cells:
1
Battery Chemistry:
Lithium Ion/Polymer
Base Product Number:
FAN54300
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is Lithium-Ion Lithium-Polymer Battery Charger 1500mA WLCSP 30-Pin manufactured by Fairchild Semiconductor. The manufacturer part number is FAN54300UCX. The given dimensions of the product include 2.46 x 2.26 x 0.378mm. The product is available in surface mount configuration. It has a maximum operating temperature of +85 °c. In addition, the height is 0.378mm. Furthermore, the product is 2.26mm wide. Its accurate length is 2.46mm. Whereas, the minimum operating temperature of the product is -40 °c. Programmable Specifications - current, timer, voltage. It is assigned with possible HTSUS value of 8542.39.0001. The product is rohs3 compliant. 30-wlcsp (2.46x2.26) is the supplier device package value. The product has -30°c ~ 85°c (ta) operating temperature range. Moreover, the product comes in [Package/ Case]. Absolute maximum supply voltage of 9.5v. In addition, it is reach unaffected. A bespoke product is i²c interface. It is shipped in bulk. Its typical moisture sensitivity level is 1 (unlimited). Fault protection features include over temperature, over voltage, short circuit. It is comprised of 1 cells. Features a lithium ion/polymer battery chemistry. Moreover, it corresponds to fan54300, a base product number of the product. The product is designated with the ear99 code number

pdf icon
FAN54300, USB-Compliant, Dual-Power Input, Single-Cell, Li-Ion Switching Charger with USB-OTG Boost Regulator(Technical Reference)
