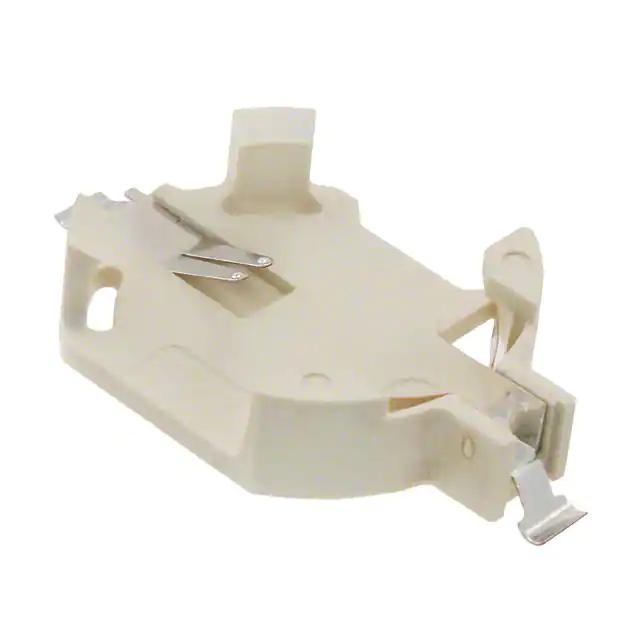

TE Connectivity AMP Connectors 796136-1

796136-1 TE Connectivity AMP Connectors
TE Connectivity AMP Connectors

Product Information

Style:
Holder (Open)
HTSUS:
8536.69.4040
RoHS Status:
RoHS Compliant
Termination Style:
SMD (SMT) Tab
Operating Temperature:
-
Battery Series:
2032
Battery Type, Function:
Coin Cell, Holder
Package:
Tape & Reel (TR)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Battery Cell Size:
Coin, 20.0mm
Mounting Type:
PCB, Surface Mount
Series:
AMP
Number of Cells:
1
Height Above Board:
0.260" (6.60mm)
Base Product Number:
796136
ECCN:
EAR99
Checking for live stock

This is manufactured by TE Connectivity AMP Connectors. The manufacturer part number is 796136-1. Additionally, the product is designed with holder (open) Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs compliant. Moreover, it has smd (smt) tab terminal style. It is shipped in tape & reel (tr). Its typical moisture sensitivity level is 1 (unlimited). The battery has a coin, 20.0mm cell size. The product is available in pcb, surface mount configuration. The product amp, is a highly preferred choice for users. It is comprised of 1 cells. It is 0.260" (6.60mm) high above board. Moreover, it corresponds to 796136, a base product number of the product. The product is designated with the ear99 code number

pdf icon
796136-1 Drawing Correction 11/May/2018(PCN Design/Specification)
pdf icon
Drawing updated 30/JUN/2021(PCN Design/Specification)
