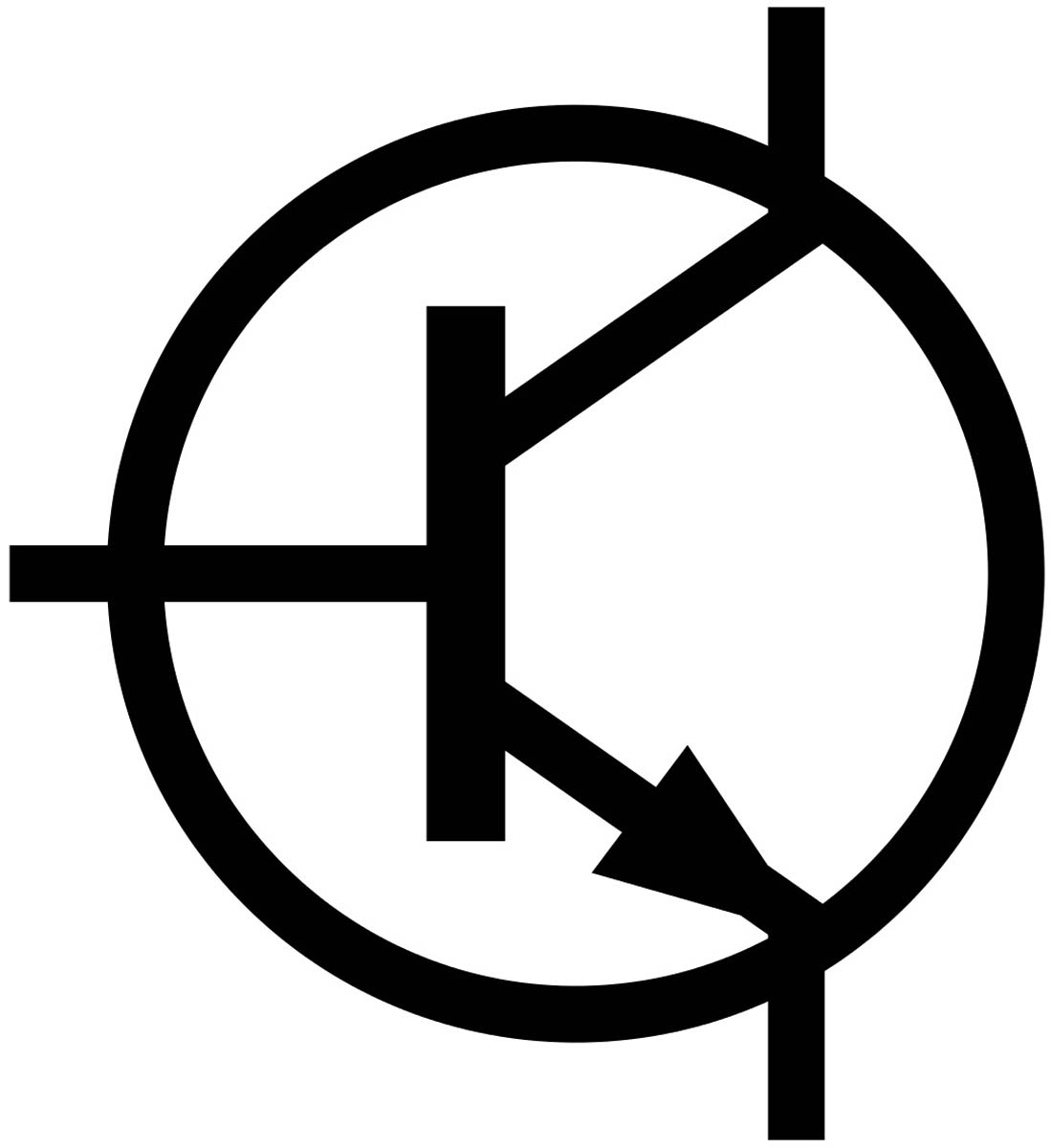

Diodes Inc ZTX696B NPN Transistor, 500 mA, 180 V, 3-Pin TO-92

ZTX696B Diodes Inc NPN Transistor, 500 mA, 180 V, 3-Pin TO-92
ZTX696B
DiodesZetex

Product Information

Minimum DC Current Gain:
500
Transistor Type:
NPN
Dimensions:
4.77 x 2.41 x 4.01mm
Mounting Type:
Through Hole
Maximum Power Dissipation:
1 W
Maximum Collector Base Voltage:
300 V
Maximum Collector Emitter Voltage:
180 V
Maximum Operating Frequency:
50 MHz
Maximum Emitter Base Voltage:
5 V
Package Type:
TO-92
Number of Elements per Chip:
1
Maximum DC Collector Current:
500 mA
Maximum Operating Temperature:
+200 °C
Pin Count:
3
Transistor Configuration:
Single
RoHs Compliant
Checking for live stock

This is Diodes Inc NPN Transistor 500 mA 180 V 3-Pin TO-92 manufactured by DiodesZetex. The manufacturer part number is ZTX696B. The transistor is a npn type. The given dimensions of the product include 4.77 x 2.41 x 4.01mm. The product is available in through hole configuration. It has a maximum operating temperature of +200 °c.

pdf icon
ZTX696B, NPN Silicon Planar Medium Power High Gain Transistor(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
