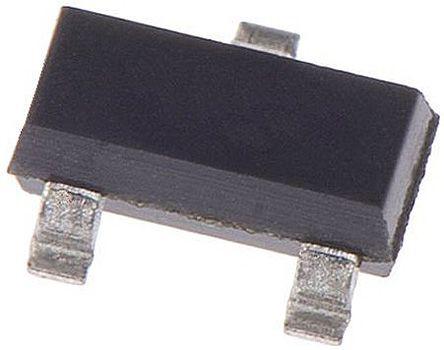

Diodes Inc ZXTN23015CFHTA NPN Transistor, 6 A, 15 V, 3-Pin SOT-23

ZXTN23015CFHTA Diodes Inc NPN Transistor, 6 A, 15 V, 3-Pin SOT-23

(0)

Product Information

Dimensions:

3.05 x 1.4 x 1mm

Maximum Collector Emitter Saturation Voltage:

180 mV

Width:

1.4mm

Transistor Configuration:

Single

Maximum Operating Frequency:

235 MHz

Package Type:

SOT-23

Number of Elements per Chip:

Maximum Operating Temperature:

+150 °C

Transistor Type:

NPN

Maximum Collector Base Voltage:

60 V

Maximum Base Emitter Saturation Voltage:

0.98 V

Maximum Emitter Base Voltage:

7 V

Checking for live stock

This is Diodes Inc NPN Transistor 6 A 15 V 3-Pin SOT-23 manufactured by DiodesZetex. The manufacturer part number is ZXTN23015CFHTA. The given dimensions of the product include 3.05 x 1.4 x 1mm. Furthermore, the product is 1.4mm wide. It has a maximum operating temperature of +150 °c. The transistor is a npn type. Its accurate length is 3.05mm. The product is available in surface mount configuration. In addition, the height is 1mm. Whereas, the minimum operating temperature of the product is -55 °c.

Datasheet(Technical Reference)

15V, SOT23, NPN Medium Power Transistor(Technical Reference)

Your Rating

Reviews

Be the first to review.

FAQs

Yes. You can also search ZXTN23015CFHTA on website for other similar products.

We accept all major payment methods for all products including ET14005141. Please check your shopping cart at the time of order.

You can order DiodesZetex brand products with ZXTN23015CFHTA directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.

Yes. Our products in Bipolar Transistors category are shipped in lowest possible time.

You will get a confirmation email regarding your order of Diodes Inc ZXTN23015CFHTA NPN Transistor, 6 A, 15 V, 3-Pin SOT-23. You can also check on our website or by contacting our customer support team for further order details on Diodes Inc ZXTN23015CFHTA NPN Transistor, 6 A, 15 V, 3-Pin SOT-23.

We use our internationally recognized delivery partners UPS/DHL. Collection of ET14005141 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search"DiodesZetex" products on our website by using Enrgtech's Unique Manufacturing Part Number ZXTN23015CFHTA.

Yes. You can also search ZXTN23015CFHTA on website for other similar products.

Yes. We ship ZXTN23015CFHTA Internationally to many countries around the world.
