Minimum DC Current Gain:
8, 14
Transistor Type:
NPN
Dimensions:
8 x 3.25 x 11mm
Mounting Type:
Through Hole
Maximum Power Dissipation:
20 W
Maximum Collector Base Voltage:
700 V
Maximum Collector Emitter Voltage:
400 V
Maximum Operating Frequency:
0.1 MHz
Maximum Emitter Base Voltage:
9 V

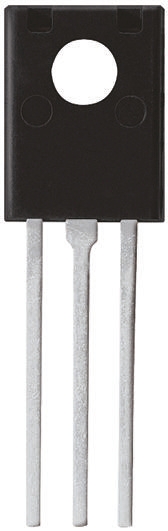

Package Type:
TO-126
Number of Elements per Chip:
1
Maximum DC Collector Current:
1.5 A
Maximum Operating Temperature:
+150 °C
Pin Count:
3
Transistor Configuration:
Single
Current - Collector (Ic) (Max):
1.5 A
HTSUS:
8541.29.0095
RoHS Status:
ROHS3 Compliant
Voltage - Collector Emitter Breakdown (Max):
400 V
Operating Temperature:
150°C (TJ)
Package / Case:
TO-225AA, TO-126-3
DC Current Gain (hFE) (Min) @ Ic, Vce:
8 @ 500mA, 2V
Frequency - Transition:
4MHz
Vce Saturation (Max) @ Ib, Ic:
3V @ 500mA, 1.5A
REACH Status:
REACH Unaffected
Transistor Type:
NPN
Package:
Tube
Moisture Sensitivity Level (MSL):
Not Applicable
standardLeadTime:
46 Weeks
Current - Collector Cutoff (Max):
10µA (ICBO)
Mounting Type:
Through Hole
Series:
-
Supplier Device Package:
TO-126-3
Power - Max:
20 W
Base Product Number:
FJE3303
ECCN:
EAR99
