Minimum DC Current Gain:
20
Transistor Type:
PNP
Dimensions:
9.28 x 10.28 x 4.82mm
Mounting Type:
Through Hole
Maximum Power Dissipation:
75 W
Maximum Collector Base Voltage:
70 V
Maximum Collector Emitter Voltage:
-60 V
Maximum Operating Frequency:
2 MHz
Maximum Emitter Base Voltage:
5 V

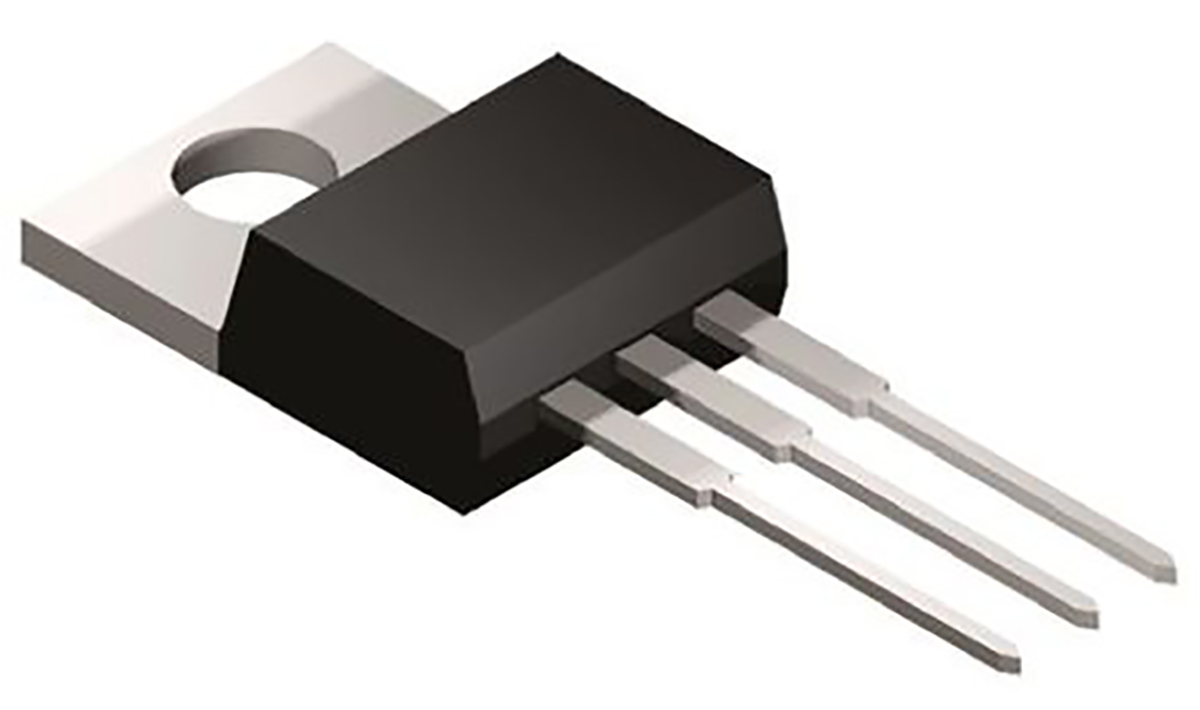

Package Type:
TO-220AB
Number of Elements per Chip:
1
Maximum DC Collector Current:
-10 A
Maximum Operating Temperature:
+150 °C
Pin Count:
3
Transistor Configuration:
Single
Current - Collector (Ic) (Max):
10 A
HTSUS:
8541.29.0095
RoHS Status:
ROHS3 Compliant
Voltage - Collector Emitter Breakdown (Max):
60 V
Operating Temperature:
-55°C ~ 150°C (TJ)
Package / Case:
TO-220-3
DC Current Gain (hFE) (Min) @ Ic, Vce:
20 @ 4A, 4V
Frequency - Transition:
2MHz
Vce Saturation (Max) @ Ib, Ic:
8V @ 3.3A, 10A
REACH Status:
REACH Unaffected
Transistor Type:
PNP
Package:
Tube
Moisture Sensitivity Level (MSL):
Not Applicable
standardLeadTime:
58 Weeks
Current - Collector Cutoff (Max):
700µA
Mounting Type:
Through Hole
Series:
-
Supplier Device Package:
TO-220
Power - Max:
75 W
Base Product Number:
MJE2955
ECCN:
EAR99
